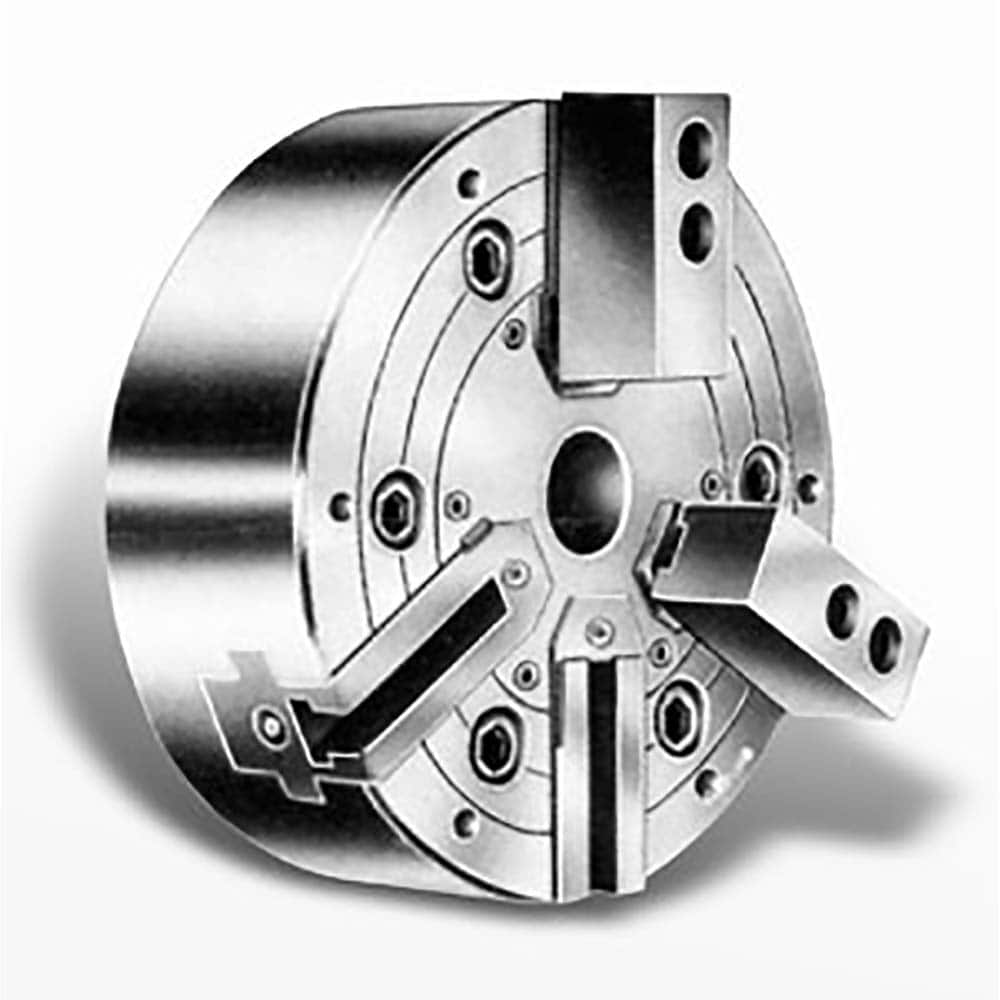

Atlas Workholding - 15" Diam A-8 Lathe Chuck
Item #: 57585168
Brand: Atlas Workholding
Model #: PAFH15-A8
Product Specifications
| Chuck Diameter (Decimal Inch) | 15.0000 |
| Mount | A-8 |
| Through-Hole Diameter (Decimal Inch) | 2.9530 |
| Jaw Interface Type | 3mm x 60 Serrated |
| Minimum Jaw Capacity (Decimal Inch) | 2.7560 |
| Maximum Static Gripping Force (Lb.) | 15652.00 (2 Jaw); 23148.00 (3 Jaw) |
| Maximum Jaw Capacity (Decimal Inch) | 13.7800 |
| Jaw Stroke Diameter (Decimal Inch) | 0.8030 |
| Piston Stroke Length (Decimal Inch) | 1.1020 |
| Maximum Drawbar Pulling Force (Lb.) | 13227.00 (3 Jaw); 8818.00 (2 Jaw) |
| Maximum RPM | 2500 |
