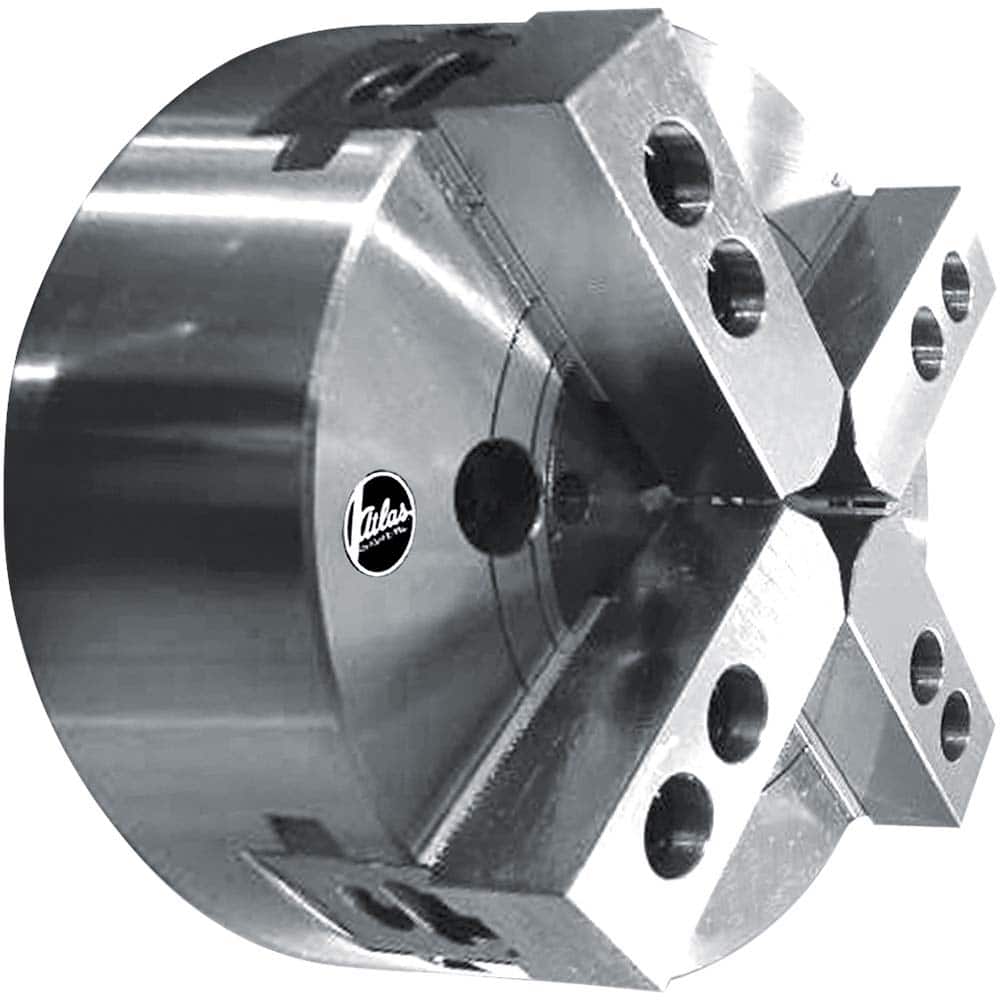

Atlas Workholding - 4 Jaw 7" Diam A-5 Lathe Chuck
Item #: 57585143
Brand: Atlas Workholding
Model #: 4ATL6-A5
Product Specifications
| Chuck Diameter (Decimal Inch) | 6.6500 |
| Number of Jaws | 4 |
| Mount | A-5 |
| Through-Hole Diameter (Decimal Inch) | 1.7710 |
| Chuck Actuation Style | Drawbar |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Jaw Stroke Diameter (Decimal Inch) | 0.2160 |
| Piston Stroke Length (Decimal Inch) | 0.4720 |
| Maximum Drawbar Pulling Force (lbf) | 4945.00 |
| Maximum Static Gripping Force (lbf) | 12813.00 |
| Maximum RPM | 4500 |
| Body Material | Steel |
