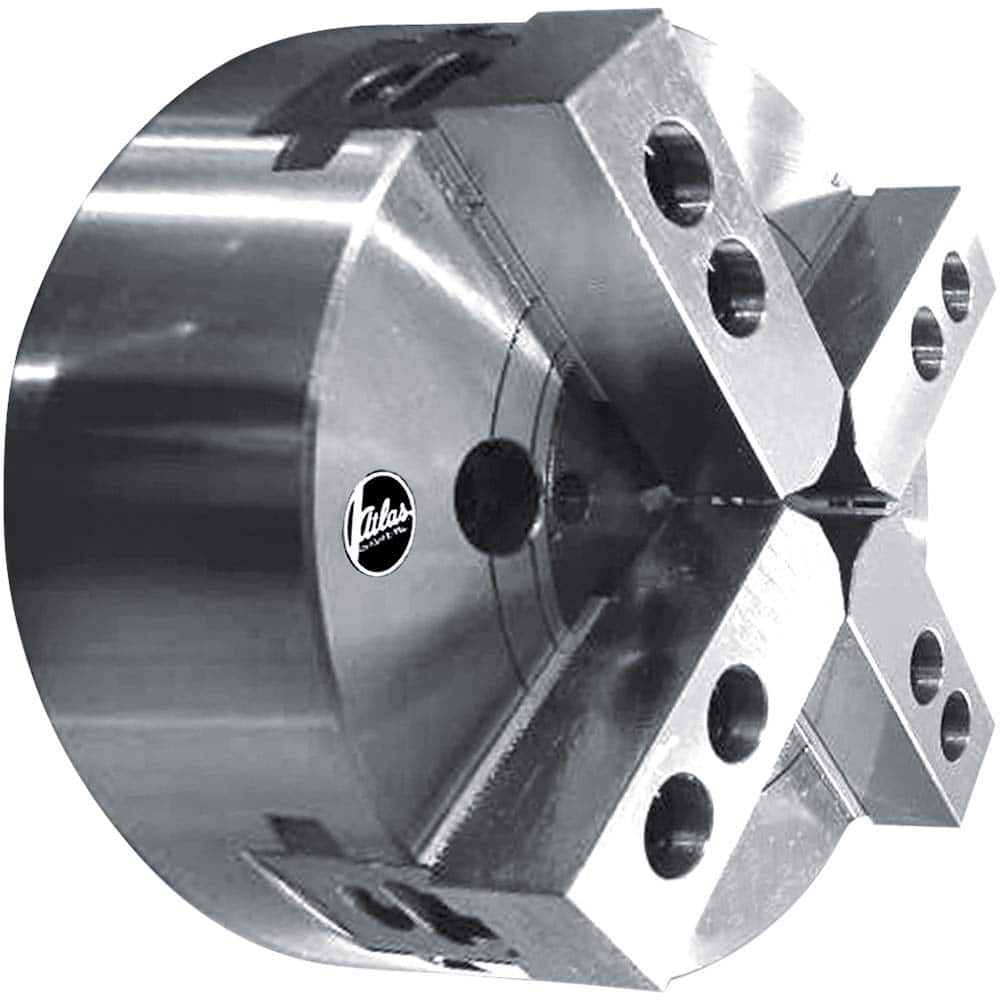

Atlas Workholding - 4 Jaw 15" Diam A-8 Lathe Chuck
Item #: 57585077
Brand: Atlas Workholding
Model #: 4ATL15-A8
Product Specifications
| Chuck Diameter (Decimal Inch) | 15.0000 |
| Number of Jaws | 4 |
| Mount | A-8 |
| Through-Hole Diameter (Decimal Inch) | 4.6250 |
| Chuck Actuation Style | Drawbar |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Jaw Stroke Diameter (Decimal Inch) | 0.4170 |
| Piston Stroke Length (Decimal Inch) | 0.9050 |
| Maximum Drawbar Pulling Force (lbf) | 15961.00 |
| Maximum Static Gripping Force (lbf) | 40405.00 |
| Maximum RPM | 1900 |
| Body Material | Steel |
