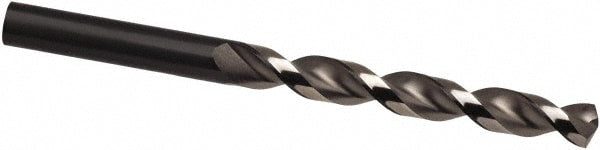

Jobber Drill: 6.83 mm Dia, 130 deg Point, High Speed Steel
Item #: 69344943
Brand: Guhring
Model #: 9005490068300
Product Specifications
| Drill Bit Size (mm) | 6.83 |
| Drill Bit Size (Decimal Inch) | 0.2689 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Cast Iron; Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K; N |
| Shank Diameter (Decimal Inch) | 0.4844 |
| Overall Length (mm) | 109.00 |
| Overall Length (Decimal Inch) | 4.2913 |
| Spiral Type | Regular |
| Flute Length (mm) | 69.00 |
| Flute Length (Decimal Inch) | 2.7165 |
| Series | 549 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 6.83 |
| Maximum Drilling Depth (Decimal Inch) | 4.1875 |
| Maximum Drilling Depth (mm) | 58.76 |
| Shank Length (mm) | 40 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Shank Type | Straight |
| Standards | DIN 338 |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.2500 - 0.3000 |
| Drill Bit Size Range (mm) | 6.00 - 7.00 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Drill Bit Size (mm) | 6.83 |
| Drill Bit Size (Decimal Inch) | 0.2689 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Cast Iron; Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K; N |
| Shank Diameter (Decimal Inch) | 0.4844 |
| Overall Length (mm) | 109.00 |
| Overall Length (Decimal Inch) | 4.2913 |
| Spiral Type | Regular |
| Flute Length (mm) | 69.00 |
| Flute Length (Decimal Inch) | 2.7165 |
| Series | 549 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 6.83 |
| Maximum Drilling Depth (Decimal Inch) | 4.1875 |
| Maximum Drilling Depth (mm) | 58.76 |
| Shank Length (mm) | 40 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Shank Type | Straight |
| Standards | DIN 338 |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.2500 - 0.3000 |
| Drill Bit Size Range (mm) | 6.00 - 7.00 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| MSC Part # | 69344943 |
| Mfr Part # | 9005490068300 |
| Country of Origin Country of Origin is subject to change | Germany |
