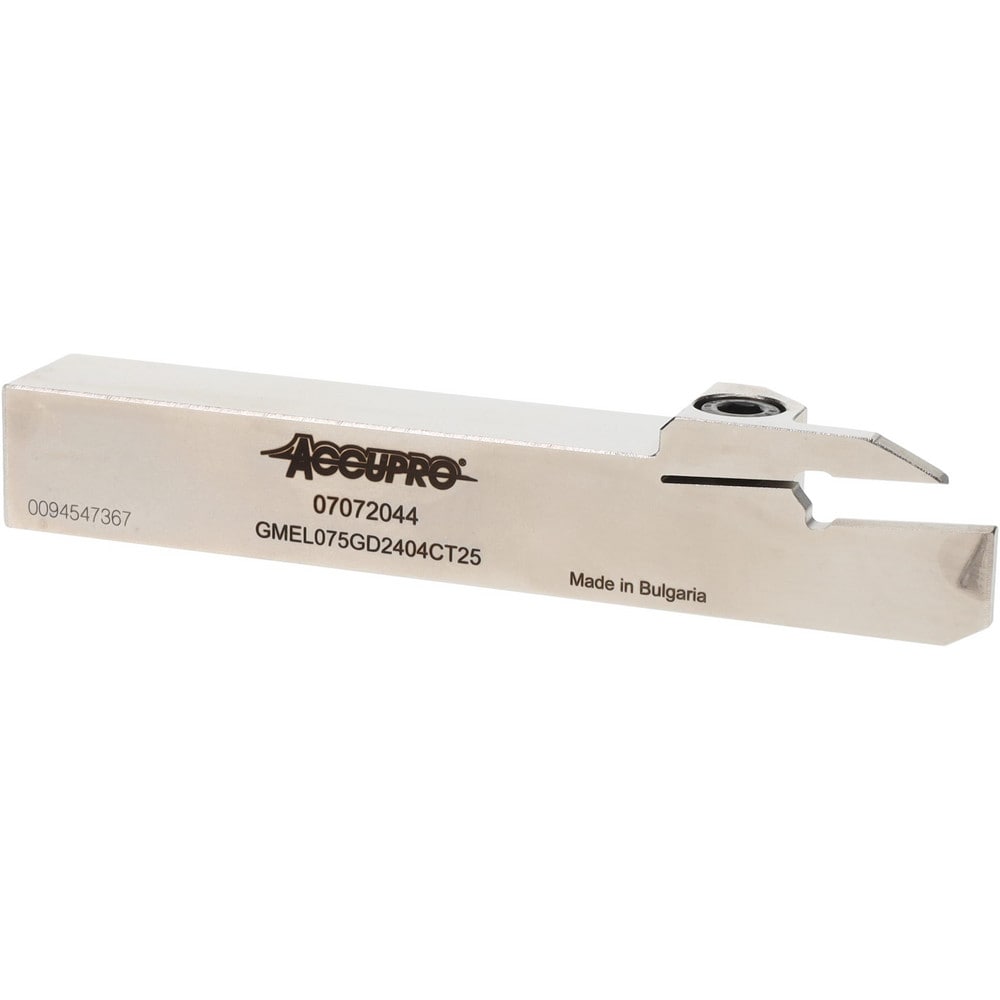

Indexable Grooving Toolholder: GMEL075GD2404CT25, 0.1575" Max Groove Width
Item #: 07072044
Brand: Accupro
Model #: 07072044
Product Specifications
| Toolholder Type | External Grooving |
| Insert Seat Size | 4 |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.9853 |
| Maximum Depth of Cut (mm) | 25.00 |
| Minimum Groove Width (Decimal Inch) | 0.1575 |
| Minimum Groove Width (mm) | 4.00 |
| Maximum Groove Width (mm) | 4.00 |
| Toolholder Style | GMEL |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | 4 |
| Shank Height (mm) | 19.05 |
| Shank Height (Decimal Inch) | 0.7500 |
| Series | CI |
| Overall Length (mm) | 127 |
| Overall Length (Decimal Inch) | 5 |
| UNSPSC Code | 23153308 |
| Toolholder Material | Steel |
| Coolant Through | No |
