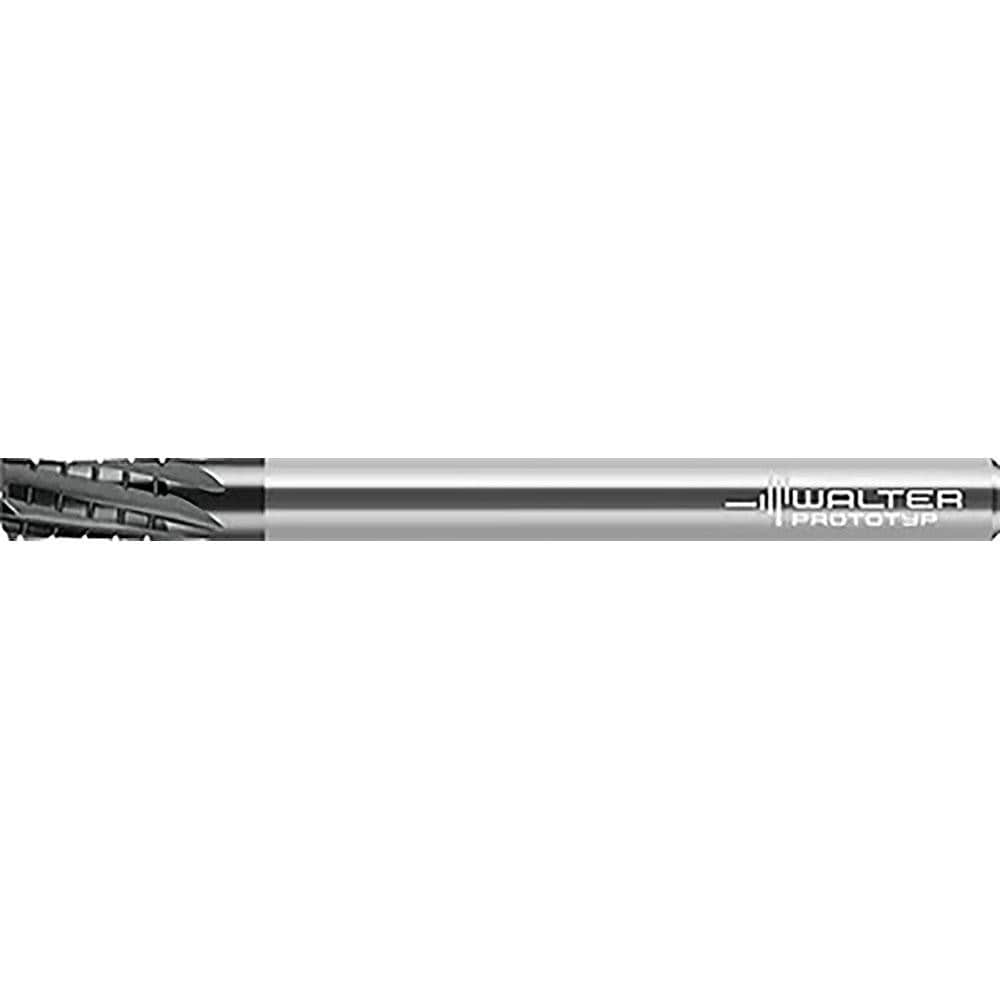

Roughing End Mill: 3.00 mm Dia, 6 Flute, Single End, Solid Carbide, Chipbreaker
Item #: 07018526
Brand: Walter-Prototyp
Model #: 8416708
Product Specifications
| Mill Diameter (mm) | 3.00 |
| Number Of Flutes | 6 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 12.00 |
| Coating/Finish | DLC |
| Centercutting | No |
| Mill Diameter (Decimal Inch) | 0.1181 |
| Shank Diameter (mm) | 3.00 |
| Shank Type | Whistle Notch |
| Extended Reach | No |
| Variable Helix | No |
| Chipbreaker | Yes |
| Material Grade | Solid Carbide |
| Single Or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Shank Diameter Tolerance | h6 |
| Reach Length (Decimal Inch) | 0.4724 |
| Reach Length (mm) | 12.00 |
| Series | MA290-A |
| UNSPSC Code | 23241614 |
