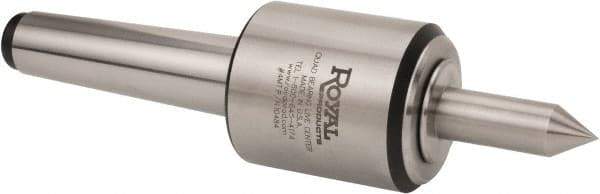

Royal Products - MT2 Morse Taper, 1.7" Head Diam Live Center - 6,000 Max RPM, 2.12" Head Length, 1/2" Point Diam, 1-3/4" Point Len, 350 Lb Max Workpc, Long Point
Item #: 57368508
Brand: Royal Products
Model #: 10482
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Morse Taper |
| Taper Size | MT2 |
| Maximum Workpiece Weight (Lb.) | 350.00 |
| Point Style | Long |
| Point Diameter (Inch) | 1/2 |
| Point Diameter (Decimal Inch) | 0.5000 |
| Point Length (Decimal Inch) | 1.7500 |
| Thrust Load (Lb.) | 1270.00 |
| Radial Load (Lb.) | 350.00 |
| Head Diameter (Decimal Inch) | 1.7000 |
| Head Length (Decimal Inch) | 2.1200 |
| Maximum RPM | 6000 |
| Carbide-Tipped | No |
