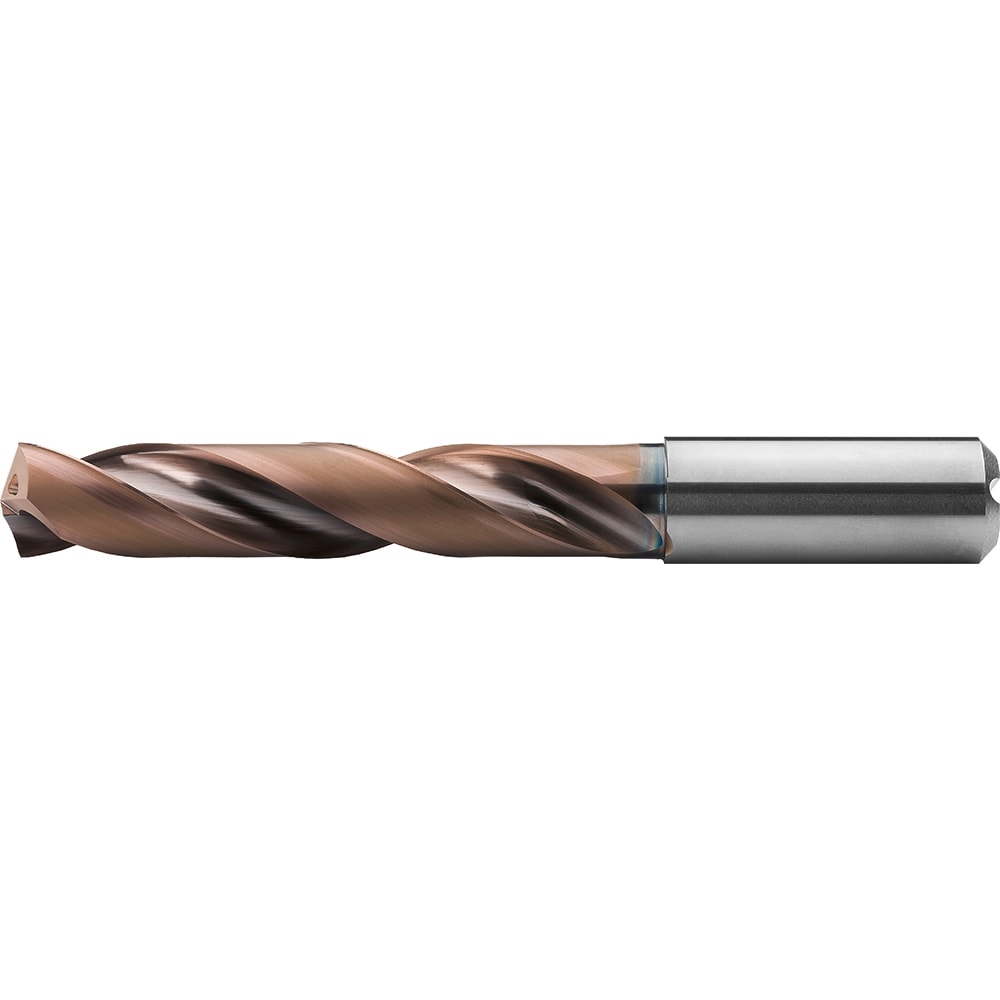

Extra Length Drill Bit: 0.4173", 140 °, Carbide
Item #: 04925319
Brand: Mitsubishi
Model #: 554097
Product Specifications
| Drill Bit Size (mm) | 10.60 |
| Overall Length (mm) | 117.9000 |
| Tool Material | Carbide |
| Coating/Finish | TiAlN |
| Coolant Through | Yes |
| Flute Type | Helical |
| Shank Type | Cylindrical |
| Drill Point Angle | 140 |
| Flute Length (mm) | 56.90 |
| Point Type | X-Thinning |
| Series | MMS |
| Cutting Direction | Right Hand |
| Tool Application | Drilling; Cross Hole; Stack Drilling |
| Spiral Type | Right Hand |
| Number Of Flutes | 2 |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Drill Bit Grade | High Precision; High Performance |
| Drill Bit Size (Decimal Inch) | 0.4173 |
| Drill Point Length (mm) | 1.90 |
| Drill Point Length (Decimal Inch) | 0.0748 |
| Overall Length (Decimal Inch) | 4.6417 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Shank Diameter (mm) | 12.0000 |
| Shank Length (Decimal Inch) | 2.3622 |
| Shank Length (mm) | 60.000 |
| Flute Length (Decimal Inch) | 2.2402 |
| Flute By Diameter Ratio | 3xD |
| Maximum Drilling Depth (Decimal Inch) | 1.3268 |
| Maximum Drilling Depth (mm) | 33.70 |
| Specification Designation | ISO |
| UNSPSC Code | 23241637 |
