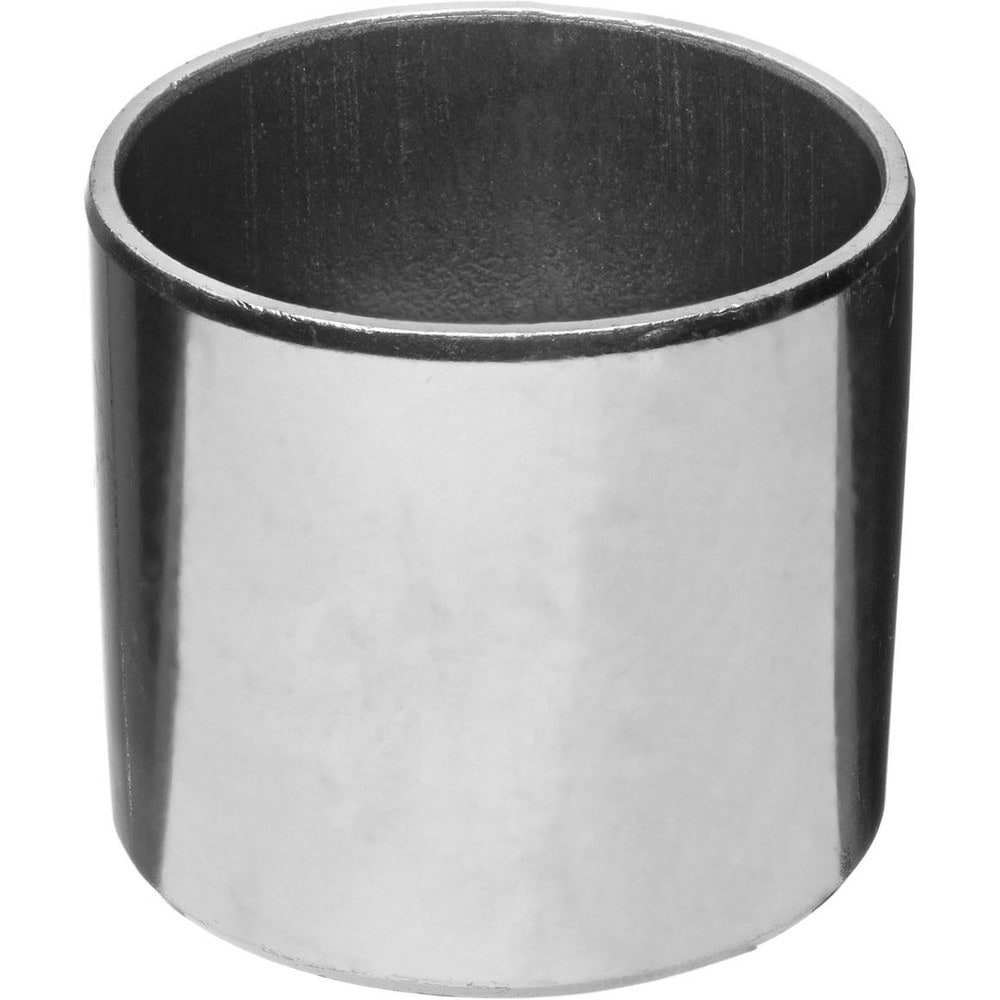

Sleeve Bearings; Bearing Type: Sleeve; Outside Diameter (Inch): 6-3/16; Outside Diameter (Decimal Inch - 4 Decimals): 6.1875; Inside Diameter (Inch): 6; Inside Diameter (Decimal Inch): 6.0000
Item #: 76809086
Brand: USA Industrials
Model #: ZUSAB-PB-1044
Product Specifications
| Bearing Type | Sleeve |
| Outside Diameter (Inch) | 6-3/16 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 6.1875 |
| Inside Diameter (Inch) | 6 |
| Inside Diameter (Decimal Inch) | 6.0000 |
| Material | Steel |
| Overall Length (Inch) | 3-1/2 |
| Overall Length (Decimal Inch) | 3.5000 |
| Static Load Capacity | 4647454.15 |
| Dynamic Load Capacity | 2923960.790 |
| Maximum Pressure X Velocity | 406 |
| Bore Type | Plain |
| Lubricant Type | PTFE |
| Temperature Range | -320 to 530 Deg F |
| Housing Bore Limits Maximum | 6.1870 |
| Housing Bore Limits Mininum | 6.1860 |
| Inside Diameter (mm) | 152.4000 |
| Overall Length (mm) | 88.9 |
| UNSPSC Code | 31171509 |
| Country of Origin | United Kingdom |
