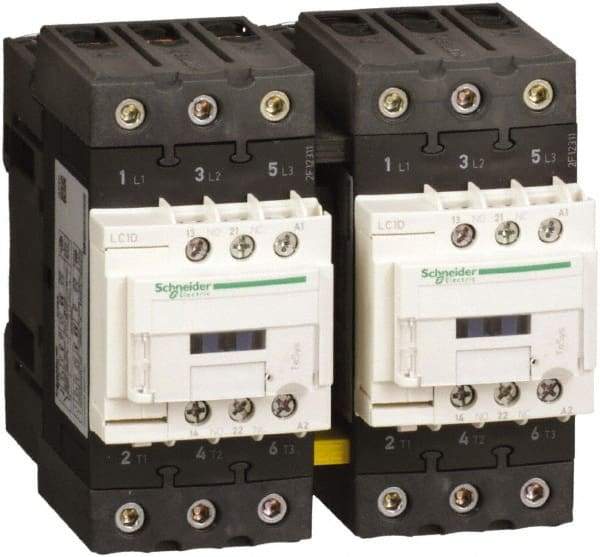

Schneider Electric - 3 Pole, 100 Coil VAC at 50/60 Hz, 500 Amp at 440 VAC, Reversible IEC Contactor - 1 Phase hp: 3 at 115 VAC, 7.5 at 230/240 VAC, 3 Phase hp: 15 at 200/208 VAC, 15 at 230/240 VAC, 40 at 460/480 VAC, 40 at 575/600 VAC
Item #: 56831969
Brand: Schneider Electric
Model #: LC2D50AK7
Exact Tooling IR#: 04
Features and Benefits
Reversing contactors are designed with three individual lines that connect to and run voltage through a motor. Each line alternates in a sequence as they reach their voltage peak. They are used to reverse the rotation of a motor.
| Product Specifications | |
|---|---|
| Number of Poles | 3 |
| Coil Voltage | 100 VAC @ 50/60 Hz |
| Amperage | 500 @ 440 VAC |
| Action | Reversible |
| Horsepower at 1 Phase | 3 @ 115 VAC; 7.5 @ 230/240 VAC |
| Horsepower at 3 Phase | 15 @ 200/208 VAC; 15 @ 230/240 VAC; 40 @ 460/480 VAC; 40 @ 575/600 VAC |
| Auxiliary Contacts | NO/NC |
| Overall Height (mm) | 122 |
| Overall Width (mm) | 119 |
| Overall Depth (mm) | 120 |
| Standards Met | CCC; CSA; CSA C22.2 No. 14; EN/IEC 60947-4-1; EN/IEC 60947-5-1; GOST; UL 508; UL Listed |
