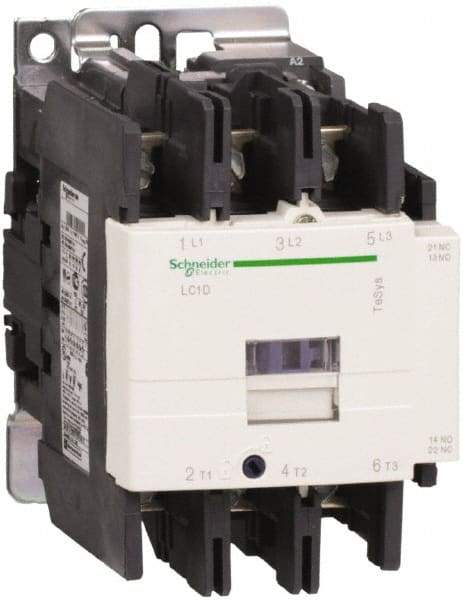

Schneider Electric - 3 Pole, 220 Coil VAC at 50/60 Hz, 95 Amp at 440 VAC, Nonreversible IEC Contactor - Bureau Veritas, CCC, CSA C22.2 No. 14, DNV, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GL, GOST, LROS, RINA, UL 508
Item #: 56831779
Brand: Schneider Electric
Model #: LC1D95M7
Exact Tooling IR#: 04
Features and Benefits
Non-reversing contactors are designed with one phase line that connects to and runs voltage through the motor. The contactor is used to turn a motor on and off.
| Product Specifications | |
|---|---|
| Number of Poles | 3 |
| Coil Voltage | 220 VAC @ 50/60 Hz |
| Amperage | 95 @ 440 VAC |
| Action | NonReversible |
| Auxiliary Contacts | NO/NC |
| Overall Height (mm) | 127 |
| Overall Width (mm) | 85 |
| Overall Depth (mm) | 130 |
| Standards Met | Bureau Veritas; CCC; CSA C22.2 No. 14; DNV; EN/IEC 60947-4-1; EN/IEC 60947-5-1; GL; GOST; LROS; RINA; UL 508 |
