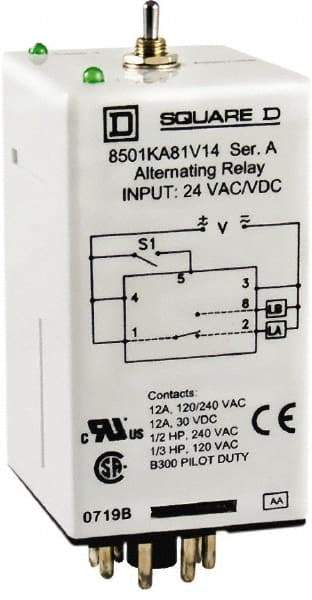

Square D - 11 Pins, 1/2 hp at 240 Volt & 1/3 hp at 120 Volt, Electromechanical Plug-in General Purpose Relay - 12 Amp at 240 VAC, DPDT, 24 VAC/VDC, 36mm Wide x 65mm High x 44mm Deep
Item #: 56702830
Brand: Square D
Model #: 8501KA112AV14
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Relay Form | Electromechanical |
| Coil Voltage | 24 VAC/VDC |
| Terminal Type | Plug-in |
| Contact Form | DPDT |
| Amperage | 12 @ 240 VAC |
| Horsepower (HP) | 1/2 @ 240 V; 1/3 @ 120 V |
| Number of Pins | 11 |
| Overall Height (mm) | 65 |
| Overall Height (Decimal Inch) | 2.6000 |
| Overall Width (mm) | 36 |
| Overall Width (Decimal Inch) | 1.4000 |
| Overall Depth (mm) | 44 |
| Overall Depth (Decimal Inch) | 1.7300 |
| Standards Met | RoHS Compliant |
