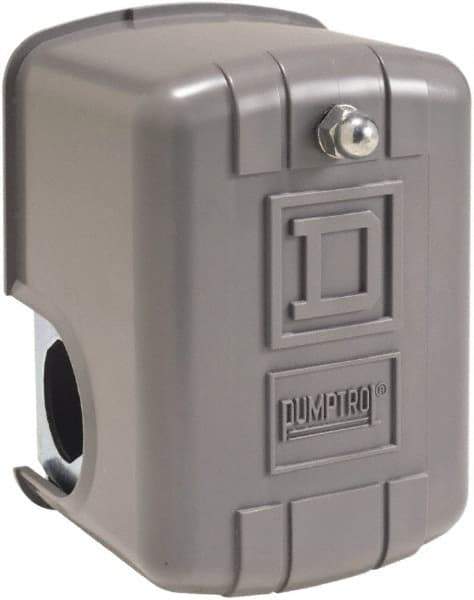

Square D - 3R NEMA Rated, DPST, 30 to 50 psi, Air Compressor Pressure and Level Switch - Adjustable Pressure, 575 VAC, 1/4 Inch NPSF Internal Inch Connector, Screw Terminal, For Use with Square D Pumptrol
Item #: 56701527
Brand: Square D
Model #: 9013FYW2J21Q8
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Pressure Switch Type | Air Compressor |
| NEMA Rating | 3R |
| Maximum Pressure Setting | 50 psi |
| Minimum Pressure Setting | 30 psi |
| Differential Pressure Type | Adjustable |
| Maximum Differential Pressure (psi) | 30.00 |
| Minimum Differential Pressure (psi) | 20.00 |
| Voltage | 575 VAC |
| Contact Form | DPST |
| Connector Size (Decimal Inch) | 0.2500 NPSF internal |
| Terminal Type | Screw |
| For Use With | Square D Pumptrol |
| Standards Met | CSA File LR25490; UL Listed File E12158 CCN NKPZ |
