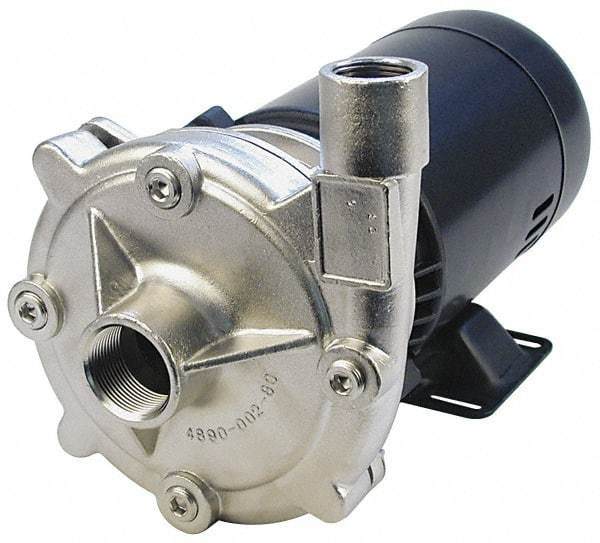

Pentair - ODP Motor, 208-230/460 Volt, 3 Phase, 1/2 HP, Stainless Steel Straight Pump - 1-1/4 Inch Inlet, 1 Inch Outlet, 82 Max Head psi, Stainless Steel Impeller, Viton Seal, 82 Ft. Shut Off
Item #: 56610744
Brand: Pentair
Model #: CHMSV123
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Current Type | Centrifugal |
| Input Voltage | 208-230/460 |
| Phase | 3 |
| Horsepower | 1/2 |
| Motor Type | ODP |
| Inlet Size (Inch) | 1-1/4 |
| Outlet Size (Inch) | 1 |
| Maximum Flow Rate (GPM) | 82.00 |
| Maximum Head Pressure | 82.0 |
| Housing Material | Stainless Steel |
| Impeller Material | Stainless Steel |
| Shaft Material | Stainless Steel |
| Seal Material | Viton |
| Seal Type | Mechanical |
| GPM @ 10 Feet of Head | 42.000 |
| GPM @ 20 Feet of Head | 39.000 |
| GPM @ 30 Feet of Head | 36.000 |
| GPM @ 40 Feet of Head | 32.000 |
| GPM @ 50 Feet of Head | 28.000 |
| GPM @ 70 Feet of Head | 14.000 |
| Shut Off Feet (Feet) | 82 |
