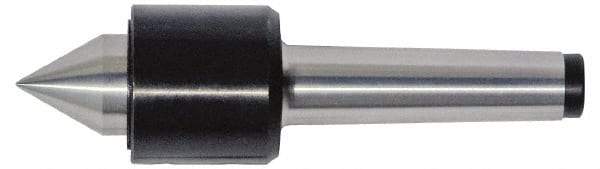

Interstate - MT4 Taper Shank Shank, 2.165" Head Diam, 1,800 Lb Capacity, Live Center - 4,100 Max RPM, 1.378" Point Diam, 1.38" Point Len, 1,800 Lb Max Workpc, Standard Point
Item #: 56590375
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT4 |
| Maximum Workpiece Weight (Lb.) | 1800.00 |
| Point Style | Standard |
| Point Diameter (Decimal Inch) | 1.3780 |
| Tip Diameter (Decimal Inch) | 1.3800 |
| Point Length (Decimal Inch) | 1.3800 |
| Accuracy (mm) | 0.0050 |
| Load Capacity (Lb.) | 1800.00 |
| Head Diameter (Decimal Inch) | 2.1650 |
| Head Length (Decimal Inch) | 3.5600 |
| Shank Length (Decimal Inch) | 4.0400 |
| Overall Length (Decimal Inch) | 7.5980 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 4100 |
| Material | Steel |
| Carbide-Tipped | No |
