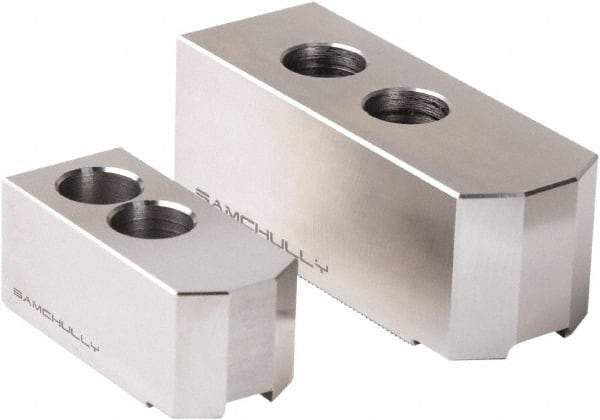

Samchully - 457mm Max Chuck Capacity, 3mm x 60° Serrated Interface, Square Soft Lathe Chuck Jaw - 3 Jaw, Steel, 50mm Btw Mount Hole Ctrs, 165mm Long, 62mm Wide, 66mm High, 22mm Groove, M20mm Fastener
Item #: 56357122
Brand: Samchully
Model #: SB15A2
Exact Tooling IR#: 04
Features and Benefits
Square end jaws are blanks that can be machined to final size.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | 3mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (mm) | 457.00 |
| Minimum Compatible Chuck Diameter (mm) | 457.00 |
| Overall Height (mm) | 66.00 |
| Groove Width (mm) | 22.00 |
| Distance Between Mount Hole Centers (mm) | 50.00 |
| Jaw End Shape | Square |
| Fastener Size (mm) | M20 |
| Number of Jaws | 3 |
| Overall Width/Diameter (mm) | 62.00 |
| Overall Length (mm) | 165.00 |
| Maximum External Chucking Diameter (mm) | 457.00 |
| Minimum External Chucking Diameter (mm) | 73.00 |
