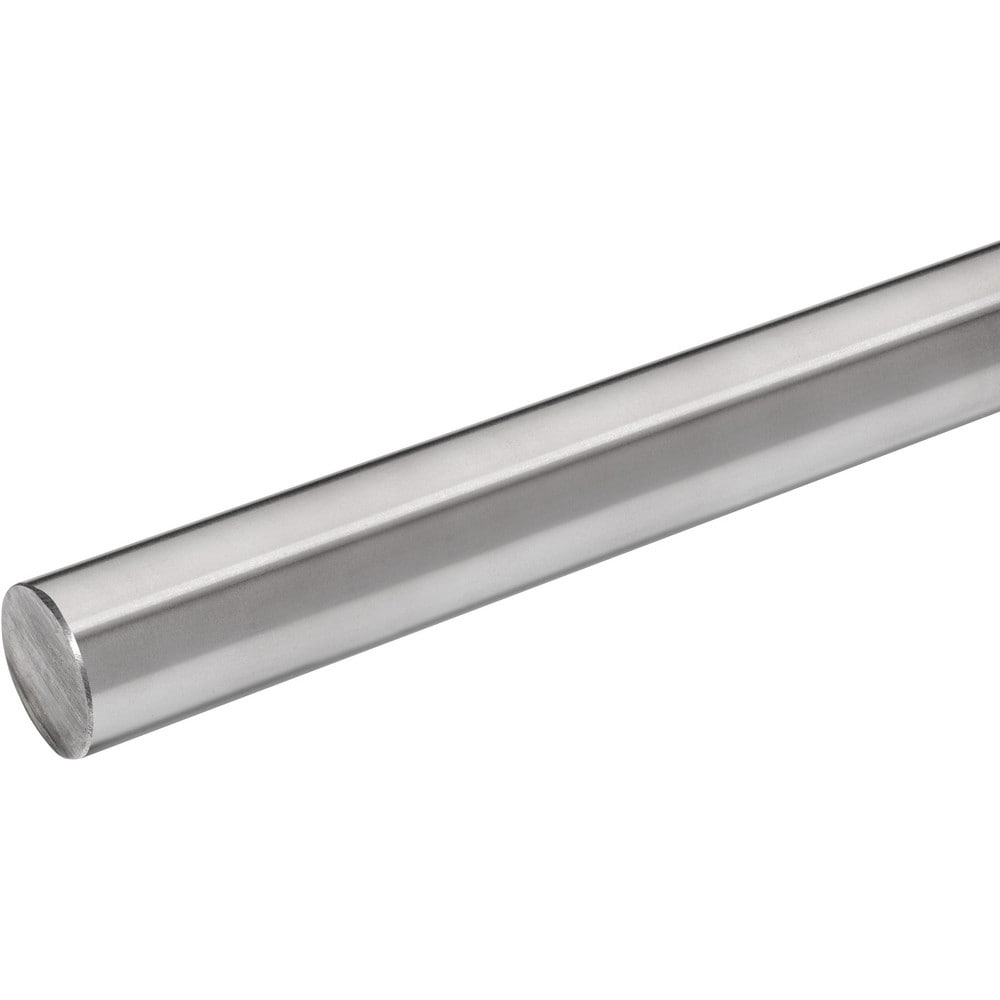

Round Linear Shafting; Shaft Type: Standard; Diameter (mm): 44.4500; Diameter (Decimal Inch): 1.7500; Diameter (Inch, Fraction): 1-3/4; Shaft Diameter: 44.450; Shaft Diameter: 1.7500; Material: Steel; Length (Inch): 6; Minimum Diameter Tolerance: 44.4246
Item #: 77743813
Brand: USA Industrials
Model #: ZSHAFT-202
Product Specifications
| Shaft Type | Standard |
| Diameter (mm) | 44.4500 |
| Diameter (Decimal Inch) | 1.7500 |
| Diameter (Inch, Fraction) | 1-3/4 |
| Shaft Diameter | 44.450 |
| Shaft Diameter | 1.7500 |
| Material | Steel |
| Length (Inch) | 6 |
| Minimum Diameter Tolerance | 44.4246 mm |
| Maximum Diameter Tolerance | 44.4373 mm |
| Hardness | 60-65 HRC |
| Material Grade | 1060 |
| Tolerance | 1.7495/1.7490 |
| UNSPSC Code | 23153030 |
| Country of Origin | Germany |
