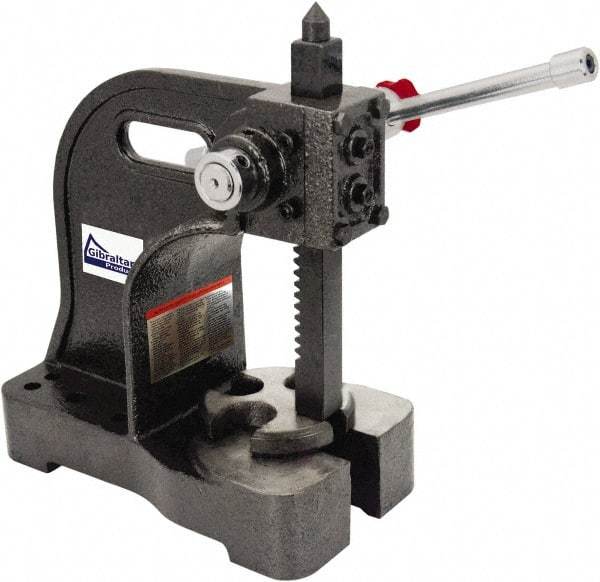

Gibraltar - 1-1/2" Ram, 5-1/4" Throat Depth, 3 Ton Manual Arbor Press - 12-1/2" Max Work Height x 16-1/2" Max Work Width, Single Leverage, 20:1 Leverage Ratio, 8-1/2" Base Width x 10" Base Depth
Item #: 55915771
Brand: Gibraltar
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Power Type | Manual |
| Pressure | 3 Ton |
| Ram Width/Diameter (Inch) | 1-1/2 |
| Throat Depth (Inch) | 5-1/4 |
| Maximum Work Height (Inch) | 12-1/2 |
| Maximum Work Width/Diameter (Inch) | 16-1/2 |
| Stroke (Inch) | 12 |
| Leverage Style | Single |
| Leverage Ratio | 20:1 |
| Precision | No |
| Table Length (Decimal Inch) | 6.7500 |
| Table Width (Decimal Inch) | 8.5000 |
| Base Width (Inch) | 8-1/2 |
| Base Width (Decimal Inch) | 8.5000 |
| Base Depth (Inch) | 10 |
| Base Depth (Decimal Inch) | 10.0000 |
| Overall Height (Inch) | 21-1/2 |
