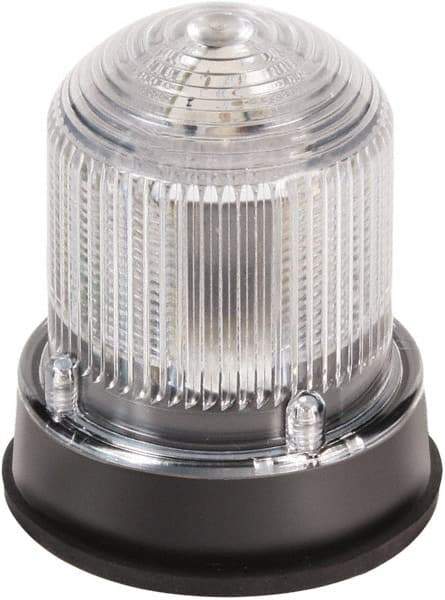

Edwards Signaling - 24 VDC, 4X NEMA Rated, LED, Amber, Green, Red, Multi Status Indicator - 65, 120, 240 Flashes per min, 3/4 Inch Pipe, 3-1/4 Inch Diameter, 3-7/8 Inch High, Panel Mount, Pipe Mount
Item #: 55527410
Brand: Edwards Signaling
Model #: 125XBRIRGA24DB
Exact Tooling IR#: 04
Features and Benefits
Multi-status indicators are designed with multiple colored signals in one housing. Each light indicates a specific warning signal for alerting about potentially hazardous situations.
LEDs are solid state lamps that use light-emitting diodes to produce light. They use less electricity, contain no mercury, run cool, emit virtually no UV/IR light, are long rated in average life and are one of the most energy efficient lamps available.
NEMA 4X refers to enclosures constructed for indoor or outdoor use. They provide a degree of protection from falling dirt, windblown dust, rain, sleet, snow, splashing water and hose directed water and external formation of ice on the enclosure.
| Product Specifications | |
|---|---|
| Light Type | Multi-Status Indicator |
| Lens Color | Amber; Green; Red |
| Lamp Type | LED |
| Mounting Type | Panel Mount; Pipe Mount |
| NEMA Rating | 4X |
| Voltage | 24 VDC |
| Recommended Environment | Indoor; Outdoor |
| Flashes Per Minute | 65; 120; 240 |
| Amperage | 0.15 |
| Pipe/Pendant Mount Size (Inch) | 3/4 (Pipe) |
| Overall Height (Decimal Inch) | 3-7/8 |
| Overall Height (mm) | 98.40 |
| Overall Height (Inch) | 3-7/8 |
| Overall Diameter (Decimal Inch) | 3-1/4 |
| Overall Diameter (mm) | 82.60 |
| Overall Diameter (Inch) | 3-1/4 |
| Maximum Operating Temperature (F) | 150.80 |
| Minimum Operating Temperature (F) | -31 |
| Resistance Features | Anti-Corrosive; Chemical Resistant; Heat Resistant; Shatter Resistant Lens |
| Standards Met | cUL Listed; cULus; UL Listed 1638 |
