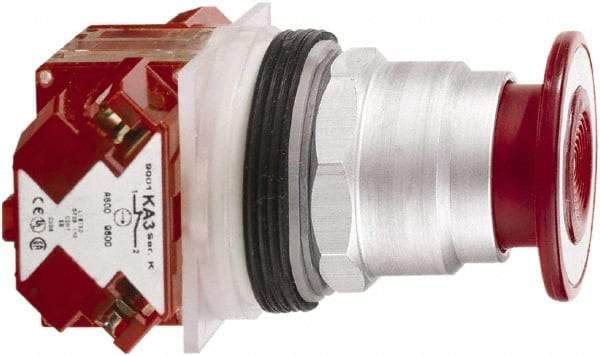

Square D - 1.18 Inch Mount Hole, Extended Mushroom Head, Pushbutton Switch Only - Round, Red Pushbutton, Nonilluminated, Shock and Vibration Resistant, Momentary (MO) (Push/Pull)-Maintained (MA) (Neutral)
Item #: 55489934
Brand: Square D
Model #: 9001KR8RH25
Exact Tooling IR#: 04
Features and Benefits
Pushbutton switches are designed with the front side of the switch outfacing on the panel. Used in conjunction with a contact block, these switches are designed to activate machinery by button that is pressed and released. Applications include starting and stopping the machine.
Nonilluminated pushbuttons do not feature a light within the button.They are commonly used in areas where added light is not needed.
| Product Specifications | |
|---|---|
| Mounting Hole Diameter (mm) | 30 |
| Mounting Hole Diameter (Decimal Inch) | 1.1800 |
| Switch Type | Pushbutton Switches Only |
| Pushbutton Type | Extended (Mushroom Head) |
| Pushbutton Shape | Round |
| Pushbutton Color | Red |
| Operator Illumination | NonIlluminated |
| Operation Type | Momentary (MO) (Push/Pull)-Maintained (MA) (Neutral) |
| Pushbutton Material | Metal (Bezel); Plastic |
| Amperage | 0.55 @ 125 VDC; 3 @ 240 VAC |
| Voltage | 125 VDC; 240 VAC |
| Contact Configuration | 2NC |
| Terminal Type | Screw Clamp |
| NEMA Rating | 1; 2; 3; 4; 6; 12; 13; 3R |
| Resistance Features | Shock Resistant; Vibration Resistant |
| Standards Met | CSA C22.2 No. 14; EN/IEC 60947-1; EN/IEC 60947-5-1; EN/IEC 60947-5-4; IEC 60068-2-27; IEC 60068-2-6; JIS C 4520; JIS C 852; UL 508 |
