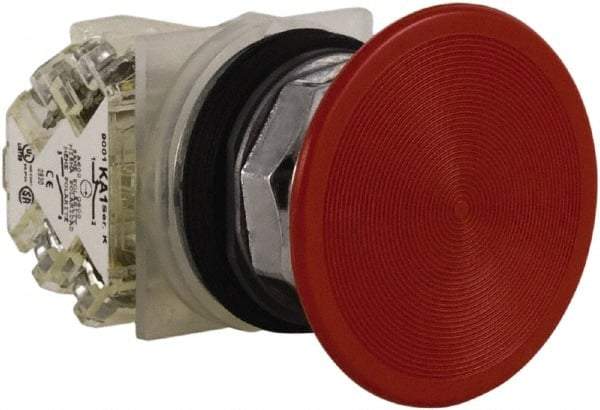

Square D - 30mm Mount Hole, Extended Mushroom Head, Pushbutton Switch Only - Round, Red Pushbutton, Nonilluminated, Momentary (MO), Dusttight, Oiltight and Watertight
Item #: 55489462
Brand: Square D
Model #: 9001KR5RH13
Exact Tooling IR#: 04
Features and Benefits
Pushbutton switches are designed with the front side of the switch outfacing on the panel. Used in conjunction with a contact block, these switches are designed to activate machinery by button that is pressed and released. Applications include starting and stopping the machine.
Nonilluminated pushbuttons do not feature a light within the button.They are commonly used in areas where added light is not needed.
| Product Specifications | |
|---|---|
| Mounting Hole Diameter (mm) | 30 |
| Switch Type | Pushbutton Switches Only |
| Pushbutton Type | Extended (Mushroom Head) |
| Pushbutton Shape | Round |
| Pushbutton Color | Red |
| Operator Illumination | NonIlluminated |
| Operation Type | Momentary (MO) |
| Pushbutton Material | Metal (Bezel) |
| Amperage | 10 |
| Voltage | 600 V |
| Contact Configuration | NO/NC |
| Terminal Type | Screw Clamp |
| NEMA Rating | 4/13 |
| Resistance Features | Dust-tight; Oiltight; Watertight |
| Standards Met | CE Marked; CSA Certified LR25490 Class 3211 03; UL Listed File No. E42259 CCN NKCR |
