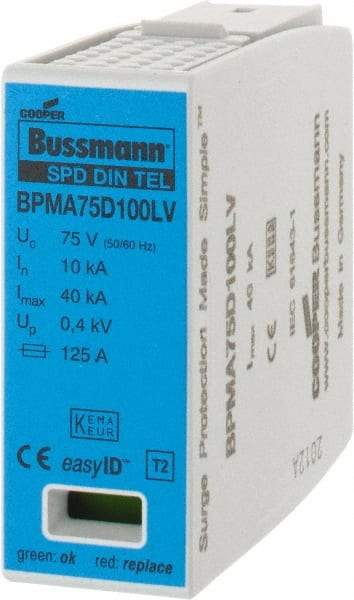

Cooper Bussmann - 1 Pole, 1 Phase, 10 kA Nominal Current, 90mm Long x 18mm Wide x 65mm Deep, Thermoplastic Hardwired Surge Protector - DIN Rail Mount, 100 VDC, 75 VAC, 100 VDC, 75 VAC Operating Voltage, 40 kA Surge Protection
Item #: 55483853
Brand: Cooper Bussmann
Model #: BPMA75D100LV
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Voltage | 100 VDC; 75 VAC |
| Nominal Discharge Current (kA) | 10.00 |
| Maximum Continuing Operating Voltage | 100 VDC; 75 VAC |
| Surge Protection Capacity (kA) | 40 |
| Mounting Type | DIN Rail Mount |
| Body Material | Thermoplastic |
| Overall Length (mm) | 90 |
| Overall Width (mm) | 18 |
| Overall Depth (mm) | 65 |
| Standards Met | CE; CSA Certified; cURus; EN 60068-2; KEMA-KEUR Certified; RoHS Compliant |
| Number of Phases | 1 |
| Number of Poles | 1 |
