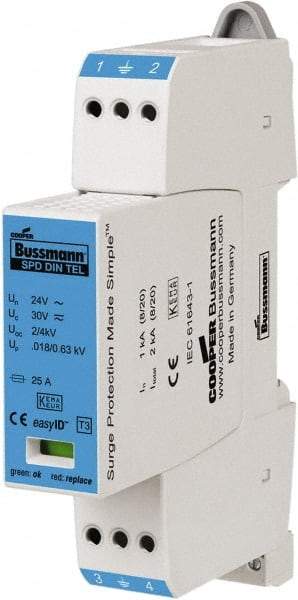

Cooper Bussmann - 2 Pole, 1 Phase, 1 kA Nominal Current, 90mm Long x 18mm Wide x 66mm Deep, Thermoplastic Hardwired Surge Protector - DIN Rail Mount, 24 VAC/VDC, 30 VAC/VDC Operating Voltage, 30 kA Surge Protection
Item #: 55483820
Brand: Cooper Bussmann
Model #: BPHA24D24LV
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Voltage | 24 VAC/VDC |
| Nominal Discharge Current (kA) | 1.00 |
| Maximum Continuing Operating Voltage | 30 VAC/VDC |
| Surge Protection Capacity (kA) | 30 |
| Mounting Type | DIN Rail Mount |
| Body Material | Thermoplastic |
| Overall Length (mm) | 90 |
| Overall Width (mm) | 18 |
| Overall Depth (mm) | 66 |
| Standards Met | CE; CSA Certified; cUL Listed; cURus; EN 60068-2; EN 61643-11; IEC 61643-1; KEMA-KEUR Certified; RoHS Compliant; UL 94 V0 EN 60715; UL Listed |
| Number of Phases | 1 |
| Number of Poles | 2 |
