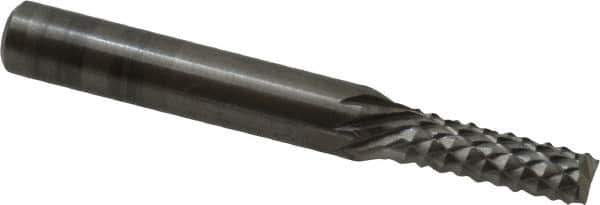

OSG - 3/16" Diam, 5/8" LOC, End Mill End, Solid Carbide Diamond Pattern Router Bit - Right Hand Cut, 2" OAL, 1/4" Shank Diam, Use on Fiberglass
Item #: 55149454
Brand: OSG
Model #: 640-1883
Exact Tooling IR#: 04
Features and Benefits
End Mill router bits are used for bottom cutting and are designed to produce a smooth surface with a square corner
Solid carbide is used for high performace applications. It is extremely heat resistant and used on cast iron, non-ferrous metals and other tough to machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 4.76 |
| Cutting Diameter (Inch) | 3/16 |
| Cutting Diameter (Decimal Inch) | 0.1875 |
| End Type | End Mill |
| Length of Cut (Decimal Inch) | 0.6250 |
| Length of Cut (Inch) | 5/8 |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 2 |
| Material | Solid Carbide |
| Finish/Coating | Bright |
| Material Application | Fiberglass |
| Cutting Direction | Right Hand |
