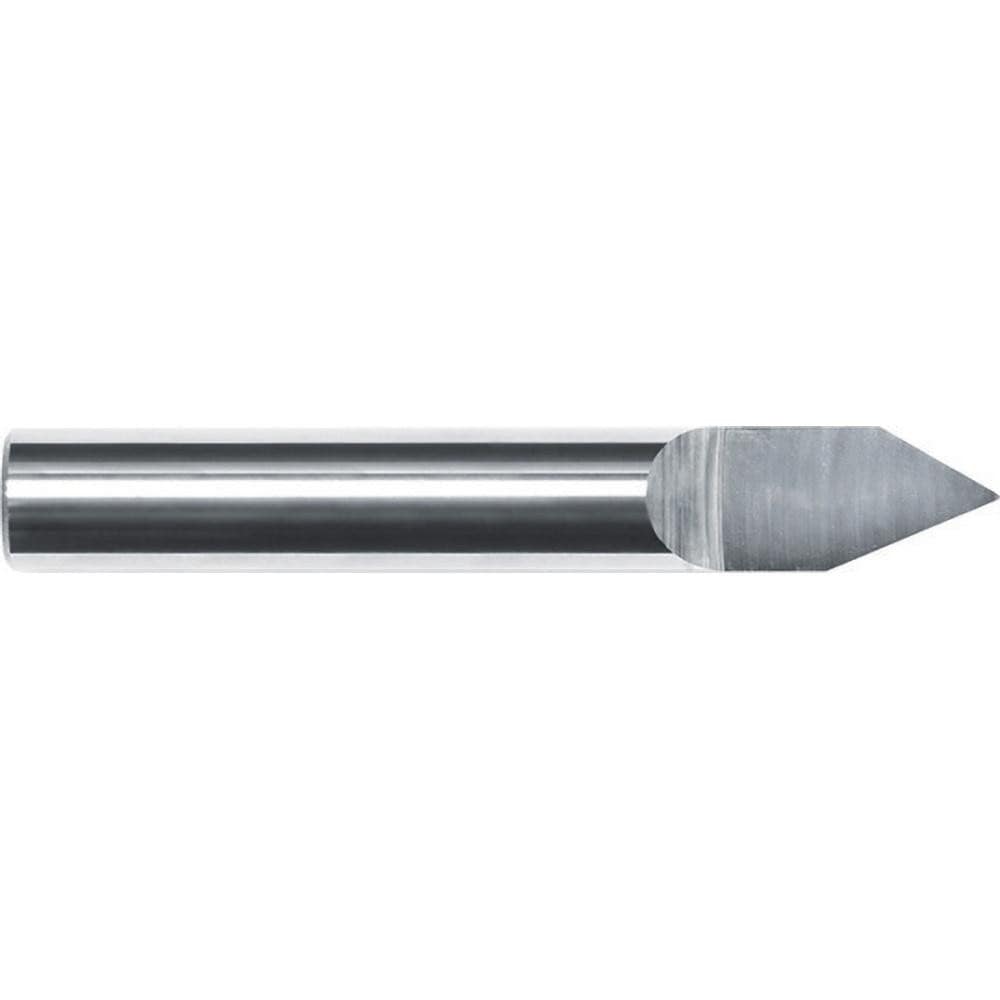

Engraving Cutters; Cutter Diameter (Inch): 3/16; Cutter Diameter (Decimal Inch): 0.1870; Point Shape: Tipped Off; Shank Diameter (Decimal Inch): 0.1870; Shank Diameter (Inch): 3/16
Item #: 32856742
Brand: Internal Tool
Model #: 62-1525-C
Product Specifications
| Cutter Diameter (Inch) | 3/16 |
| Cutter Diameter (Decimal Inch) | 0.1870 |
| Point Shape | Tipped Off |
| Shank Diameter (Decimal Inch) | 0.1870 |
| Shank Diameter (Inch) | 3/16 |
| Included Angle | 60.00 |
| Material Application | Monel; Waspaloy; Aluminum; Inconel; Hastelloy; Plastic; Steel; Stainless Steel; Cast Iron; Titanium; Nickel; Magnesium; Copper |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Primary Workpiece Material Code | P; S; K; M |
| Cutting Direction | Right Hand |
| Cutter Material Grade | Micrograin |
| Series | 62 |
| Tip Diameter (Decimal Inch) | 0.0150 |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1490 |
| Number Of Flutes | 1 |
| Cutter Material | Solid Carbide |
| UNSPSC Code | 23241614 |
