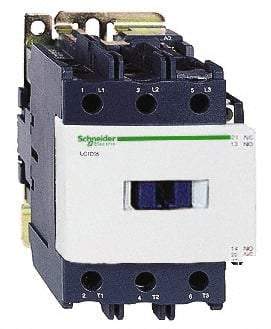

Schneider Electric - 3 Pole, 200 Coil VAC at 60 Hz, 80 Amp at 440 VAC, Nonreversible IEC Contactor - Bureau Veritas, CCC, CSA, CSA C22.2 No. 14, DNV, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GL, GOST, LROS, RINA, RoHS Compliant, UL 508, UL Listed
Item #: 54525639
Brand: Schneider Electric
Model #: LC1D80L6
Exact Tooling IR#: 04
Features and Benefits
Non-reversing contactors are designed with one phase line that connects to and runs voltage through the motor. The contactor is used to turn a motor on and off.
| Product Specifications | |
|---|---|
| Number of Poles | 3 |
| Coil Voltage | 200 VAC @ 60 Hz |
| Amperage | 80 @ 440 VAC |
| Action | NonReversible |
| Auxiliary Contacts | NO/NC |
| Overall Height (mm) | 127 |
| Overall Width (mm) | 85 |
| Overall Depth (mm) | 130 |
| Standards Met | Bureau Veritas; CCC; CSA; CSA C22.2 No. 14; DNV; EN/IEC 60947-4-1; EN/IEC 60947-5-1; GL; GOST; LROS; RINA; RoHS Compliant; UL 508; UL Listed |
