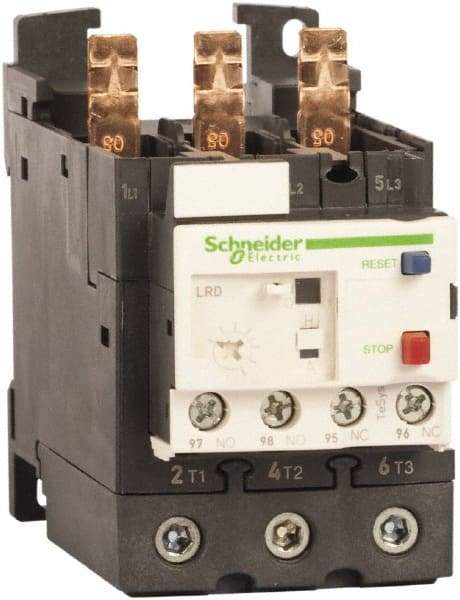

Schneider Electric - 12 to 18 Amp, 690 VAC, Thermal IEC Overload Relay - Trip Class 10A, For Use with LC1D40A and LC1D65A
Item #: 54525431
Brand: Schneider Electric
Model #: LRD318
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Starter Type | IEC |
| For Use With | LC1D40A; LC1D65A |
| Voltage | 690 VAC |
| Maximum Overload (A) | 18 |
| Sensing Method | Thermal |
| Minimum Overload (A) | 12 |
| Trip Class | 10A |
| Overall Height (mm) | 70 |
| Overall Width (mm) | 123 |
| Standards Met | ATEX 94/9/CE; CSA C22.2 No. 14; EN/IEC 60947-4-1; EN/IEC 60947-5-1; RoHS Compliant; UL 508 |
