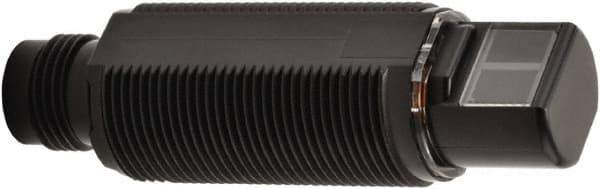

Omron - M12 Connector, 3m Nominal Distance, Insulation, Shock and Vibration Resistant, Retroreflective Photoelectric Sensor - 10 to 30 VDC, 50/60 Hz, Plastic, 57.9mm Long x 14.1mm Wide
Item #: 54220496
Brand: Omron
Model #: E3RA-RN21
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Sensor Type | Retro-reflective |
| Output Circuit Type | NPN |
| Maximum Nominal Sensing Distance (Meters) | 3.00 |
| Connector Type | M12 |
| Operation Mode | Dark-on; Light-on |
| Voltage | 10-30 VDC |
| Frequency Rating (Hz) | 50/60 |
| Ingress Protection Rating | IP67; IP69K |
| Housing Material | Plastic |
| Resistance Features | Insulation Resistant; Shock Resistant; Vibration Resistant |
| Overall Length (mm) | 57.90 |
| Overall Width/Diameter (mm) | 14.10 |
| Shape | Cylindrical |
| Maximum Operating Temperature (F) | 131 |
| Minimum Operating Temperature (F) | -13 |
| Standards Met | CE Listed |
