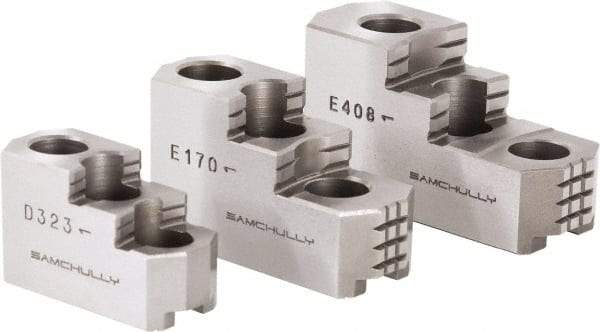

Samchully - 6" Max Chuck Diam Compatibility, Steel 1.5mm x 60° Serrated Hard Lathe Top Jaws - 2 Steps, 31mm Wide x 67mm Long x 41mm High
Item #: 54219217
Brand: Samchully
Model #: HB06A1
Exact Tooling IR#: 04
Features and Benefits
Top jaws, also known as hard or step jaws, hold a workpiece during an operation. They are reversible and are bolted onto the master jaw.
| Product Specifications | |
|---|---|
| Jaw Type | Top Jaws |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 6 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 6.00 |
| Number of Steps | 2 |
| Material | Steel |
| Overall Width/Diameter (mm) | 31.00 |
| Brand Compatibility | Kitagawa N-06; Kitagawa NL-06; Kitagawa B-06; Kitagawa B-206; Kitagawa BB-206 |
| Overall Length (mm) | 67.00 |
| Minimum Compatible Chuck Diameter (Inch) | 6 |
| Number of Jaws | 3 |
| Overall Height (mm) | 41.00 |
| Fastener Size (mm) | M10 |
