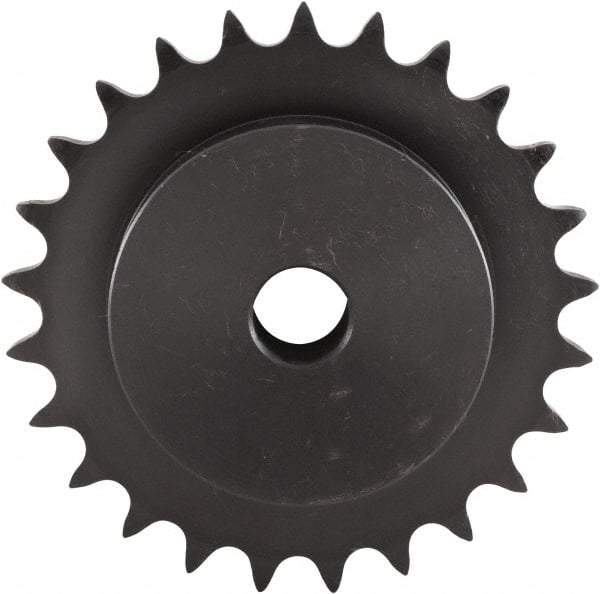

U.S. Tsubaki - 34 Teeth, 5/8" Chain Pitch, Chain Size 50, Plain Bore Sprocket - 3/4" Bore Diam, 6.774" Pitch Diam, 7.12" Outside Diam
Item #: 54197876
Brand: U.S. Tsubaki
Model #: 50B34
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Plain Bore Sprocket |
| Number of Teeth | 34 |
| Chain Pitch (Inch) | 0.625 |
| Chain Size Number | 50 |
| Maximum Bore Diameter (Inch) | 2-1/4 |
| Bore Diameter (Inch) | 3/4 |
| Bore Diameter (mm) | 19.050 |
| Outside Diameter (Decimal Inch) | 7.1200 |
| Pitch Diameter (Decimal Inch) | 6.7740 |
| PSC Code | 3020 |
