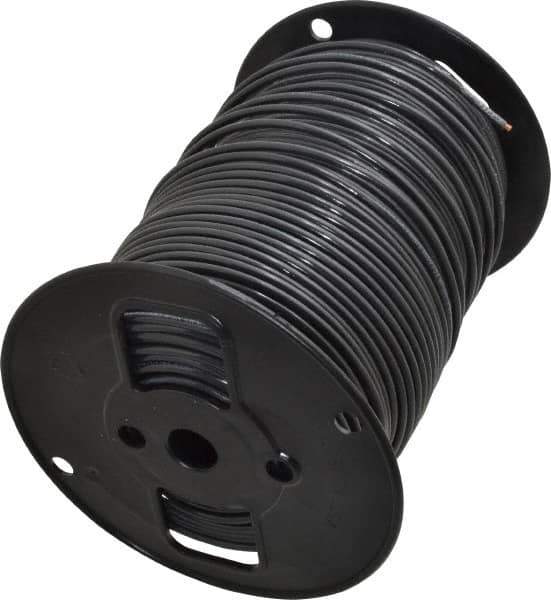

Southwire - THHN/THWN, 10 AWG, 30 Amp, 500' Long, Solid Core, 1 Strand Building Wire - Black, Thermoplastic Insulation
Item #: 54126727
Brand: Southwire
Model #: 11595601
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Conductor Type | THHN/THWN |
| Core Type | Solid |
| Wire Size (AWG) | 10 |
| Amperage | 30 |
| Jacket Material | Nylon |
| Jacket Color | Black |
| Overall Length (Feet) | 500 |
| Number of Conductors | 1 |
| Resistance Features | Abrasion Resistant; Gasoline Resistant; Heat Resistant; Moisture Resistant; Oil Resistant; Sunlight Resistant |
| Number of Strands | 1 |
| Insulation Material | Thermoplastic |
| Maximum Operating Temperature (F) | 140; 167; 194 |
| Standards Met | ASTM Specifications; CSA; Federal Specification A-A-59544; Green Specification; RoHS Compliant; UL 1063 (MTW); UL 83; UL Listed |
| Wire Material | Copper |
| Voltage | 600 V |
| PSC Code | 6145 |
