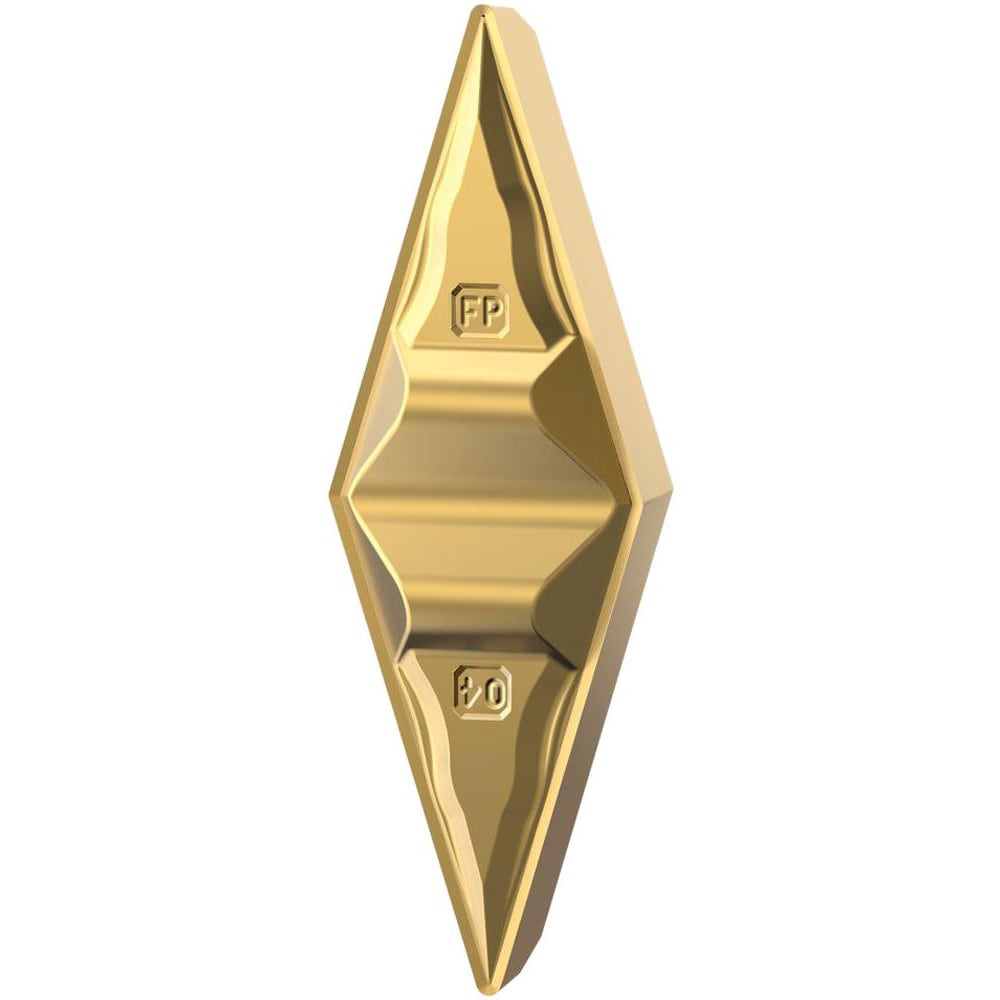

Profiling Insert: VPGR334FP KCP25C
Item #: 84456003
Brand: Kennametal
Model #: 7088179
Product Specifications
| Insert Style | VCGR |
| Insert Size Code | 160416 |
| Insert Material | Carbide |
| Width (Inch) | 3/8 |
| Manufacturer Grade | KCP25C |
| Thickness (Inch) | 3/16 |
| Insert Height (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.7600 |
| Insert Height (mm) | 4.76 |
| Maximum Depth of Cut (Decimal Inch) | 0.1250 |
| Maximum Depth of Cut (mm) | 3.18 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0625 |
| Corner Radius (mm) | 1.60 |
| Included Angle | 35.00 |
| Relief Angle | 8.000 |
| Chipbreaker | FP |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (mm) | 9.53 |
| Series | VCGR |
| Coating Process | CVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.6540 |
| Insert Length (mm) | 16.61 |
| Number Of Cutting Edges | 2 |
| Iso Code | VCGR160416FP |
| Rake Angle | 15.000 |
| Shape | Diamond |
| Coating/Finish | MT-TiCN |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Width (Decimal Inch - 4 Decimals) | 0.3748 |
| Width (mm - 2 Decimals) | 9.52 |
| UNSPSC Code | 23242105 |
| Country of Origin | UNITED STATES |
