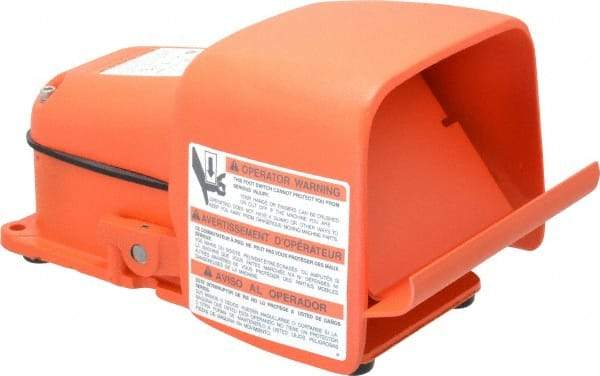

LINEMASTER - 1 Treadle, 20 Amp, 1 hp, Momentary (MO), SPDT, Electric Foot Switch - 13, 2 & 4 NEMA Rated, IP56, Cast Iron, 231.77mm Long x 152.4mm Wide x 134.92mm High
Item #: 54097100
Brand: LINEMASTER
Model #: 511-BG
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Actuator Type | Electric |
| Operation Type | Momentary (MO) |
| Number of Treadles | 1 |
| Contact Configuration | NO/NC |
| Contact Form | SPDT |
| NEMA Rating | 13; 2; 4 |
| Switch Color | Orange |
| Horsepower | 1 |
| Amperage | 20 |
| Body Material | Cast Iron |
| Ingress Protection Rating | IP56 |
| Overall Length (Decimal Inch) | 9.1250 |
| Overall Length (mm) | 231.77 |
| Overall Height (mm) | 134.92 |
| Overall Height (Decimal Inch) | 5.3120 |
| Overall Width (Decimal Inch) | 6 |
| Overall Width (mm) | 152.40 |
| Standards Met | CSA Certified; EN 60529; RoHS Compliant; UL Listed |
