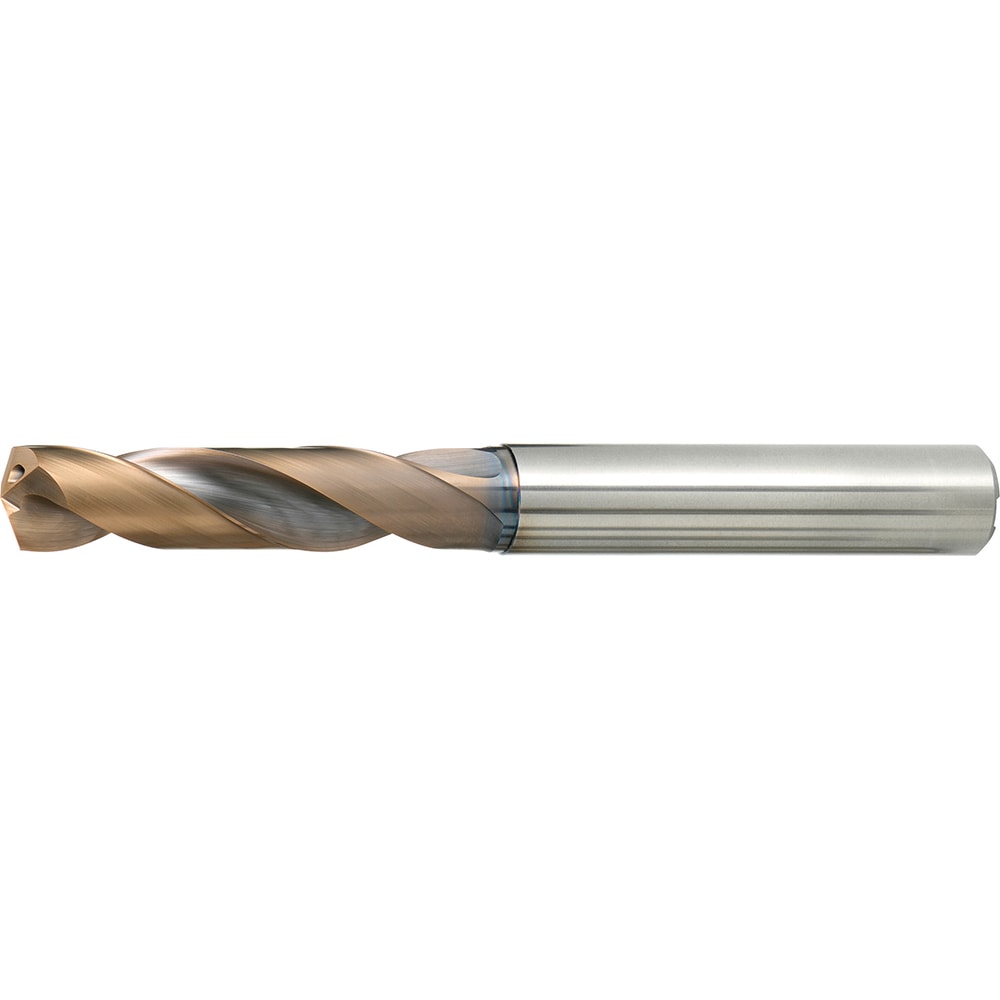

Jobber Drill: 9.60 mm Dia, 140 deg Point, Solid Carbide
Item #: 05863972
Brand: Mitsubishi
Model #: 10636312
Product Specifications
| Drill Bit Size (mm) | 9.60 |
| Drill Bit Size (Decimal Inch) | 0.3780 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | TiAlN |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Point Type | X-Thinned |
| Primary Workpiece Material | High-Temp Alloy |
| Coolant Through | Yes |
| Primary Workpiece Material Code | S |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Overall Length (mm) | 102.80 |
| Overall Length (Decimal Inch) | 4.0472 |
| Flute Length (mm) | 49.80 |
| Flute Length (Decimal Inch) | 1.9606 |
| Series | DSAS |
| Tool Application | Drilling; Holemaking |
| Flute By Diameter Ratio | 3xD |
| Shank Diameter (mm) | 10 |
| Maximum Drilling Depth (Decimal Inch) | 1.2047 |
| Maximum Drilling Depth (mm) | 30.60 |
| Shank Length (mm) | 52 |
| Shank Length (Decimal Inch) | 2.0472 |
| Drill Point Length (mm) | 1.70 |
| Drill Point Length (Decimal Inch) | 0.0669 |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Shank Type | Straight |
| Drill Bit Grade | High Precision; High Performance |
| Specification Designation | ISO |
| UNSPSC Code | 23241634 |
