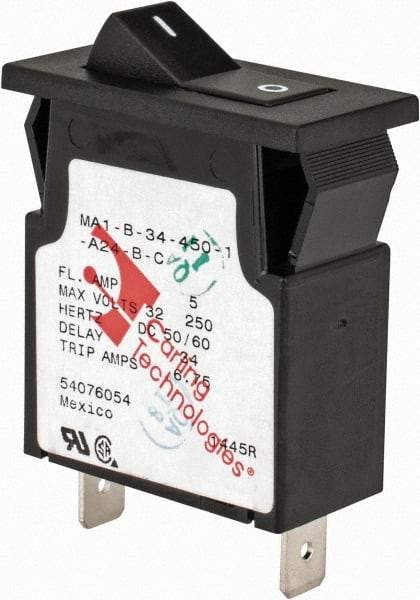

Carling Switch - 5 Amp, 277 VAC, 65 VDC, 1 Pole, Panel Mount Miniature Circuit Breaker - Hydraulic Magnetic Trip, 38.8mm Deep x 39.62mm High x 35.41mm Wide
Item #: 54076054
Brand: Carling Switch
Model #: MA1-B-34-450-1-
Exact Tooling IR#: 04
Features and Benefits
Hydraulic-magnetic tripping mechanisms are designed to be used in applications where temperatures and environmental conditions are extreme. They are quick to respond to overloads and cut-off power after a time-delay.
| Product Specifications | |
|---|---|
| Circuit Breaker Type | Miniature Circuit Breaker |
| Amperage | 5 |
| Number of Poles | 1 |
| Tripping Mechanism | Hydraulic-Magnetic |
| Terminal Connection Type | Quick Connect |
| Mounting Type | Panel Mount |
| Voltage | 277 VAC; 65 VDC |
| Maximum Operating Temperature (F) | 185 |
| Minimum Operating Temperature (F) | -40 |
| Overall Depth (Decimal Inch) | 1.5300 |
| Overall Depth (mm) | 38.80 |
| Overall Height (mm) | 39.62 |
| Overall Height (Decimal Inch) | 1.5600 |
| Overall Width (mm) | 35.41 |
| Overall Width (Decimal Inch) | 1.3940 |
| Standards Met | CSA Accepted under Class 3215 30File 047848 0 000; CSA C22.2 No. 235; EN 60934; TUV Certified EN60934 Under License No.R72040875; UL 1500 Guide PEQZ2 File E75596; UL 508 Guide CCN/NRNT2 File E148683; UL Listed 489A Guide CCN/DITT File E189195 |
| Reset Actuator Type | Handle |
