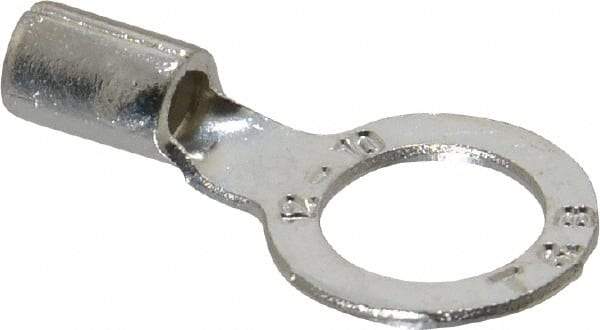

Thomas & Betts - 12-10 AWG Noninsulated Crimp Connection D Shaped Ring Terminal - 3/8" Stud, 1.1" OAL x 0.59" Wide, Tin Plated Copper Contact
Item #: 54064282
Brand: Thomas & Betts
Model #: C10-38
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Terminal Type | D Shaped |
| Insulation Type | NonInsulated |
| Connection Type | Crimp |
| Compatible Wire Size (AWG) | 12-10 |
| Stud Size (Inch) | 3/8 |
| Color | Yellow |
| Contact Material | Copper |
| Ring Width (Decimal Inch) | 0.5900 |
| Overall Length (Decimal Inch) | 1.1000 |
| Contact Plating | Tin |
| Standards Met | CSA 22.2; CSA Certified; RoHS Compliant; UL 486A; UL 486B; UL 94 V-0; UL File E9809; UL Listed |
