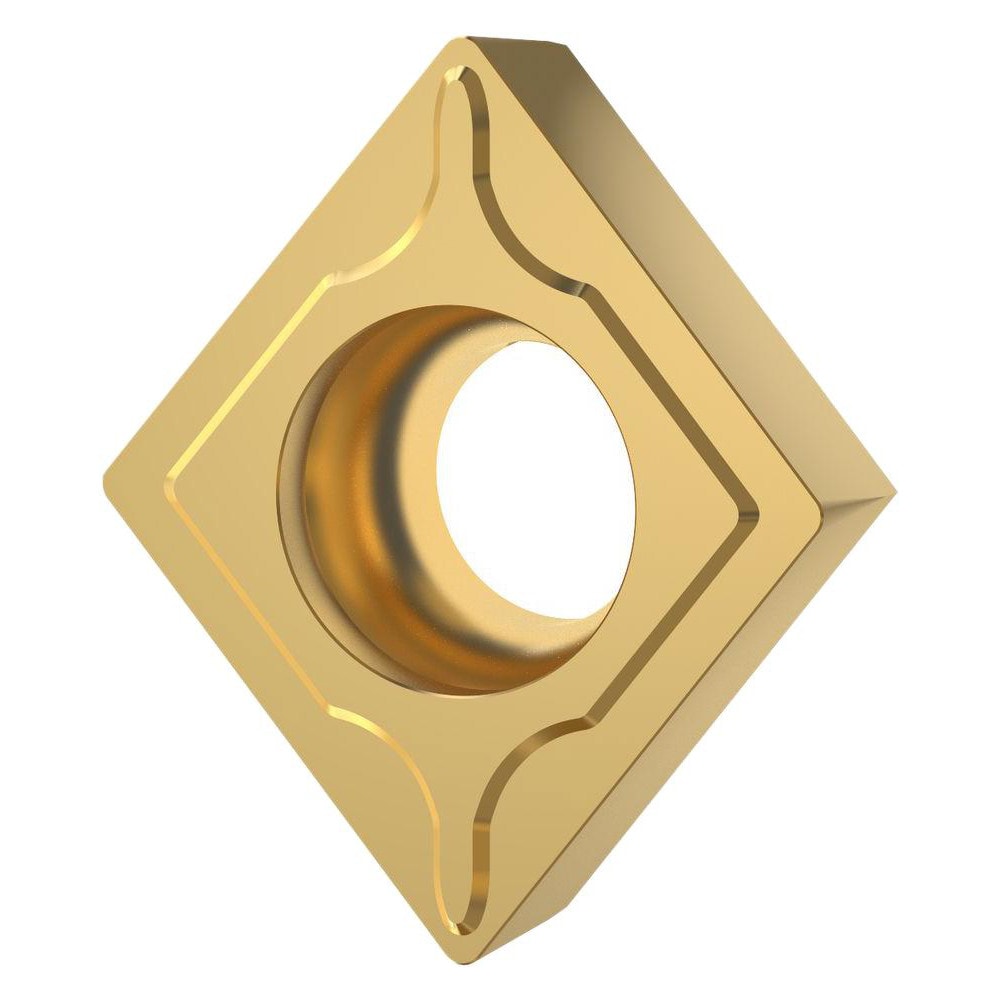

Turning Insert: CCMT21505FPS KTP25S, Carbide
Item #: 95392635
Brand: Kennametal
Model #: 7161069
Product Specifications
| ANSI Insert Code | CCMT21505 |
| ISO Insert Code | CCMT060202 |
| Relief Angle | 7.000 |
| Insert Style | CCMT |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 80.00 |
| Manufacturer Grade | KTP25S |
| Coating/Finish | TiCN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Series | CCMT |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | Rhombic 80° |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Insert Holding Method | Screw-On |
| Width (Inch) | 3/32 |
| Clearance Code | C |
| Tolerance Code | M |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.2539 |
| Iso Code | CCMT060202FPS |
| Manufacturers Catalog Number | CCMT21505FPS KTP25S |
| Chip Breaker | FPS |
| ANSI Size Code | 21505 |
| ISO Size Code | 060202 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21505 |
| Country of Origin | UNITED STATES |
