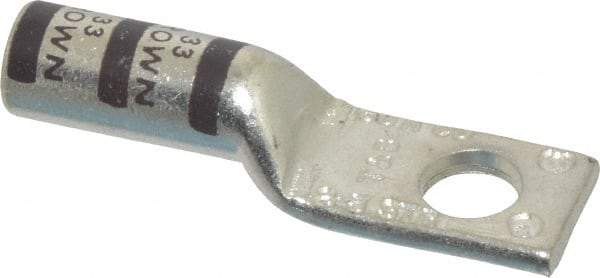

Thomas & Betts - 3-2 AWG Noninsulated Compression Connection Square Ring Terminal - 5/16" Stud, 2.03" OAL x 0.59" Wide, Tin Plated Copper Contact
Item #: 54059639
Brand: Thomas & Betts
Model #: 54942BE
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Terminal Type | Square |
| Insulation Type | NonInsulated |
| Connection Type | Compression |
| Compatible Wire Size (AWG) | 3-2 |
| Stud Size (Inch) | 5/16 |
| Color | Brown |
| Contact Material | Copper |
| Thickness (Decimal Inch) | 0.1100 |
| Ring Width (Decimal Inch) | 0.5900 |
| Overall Length (Decimal Inch) | 2.0300 |
| Contact Plating | Tin |
| Standards Met | CSA Certified; RoHS Compliant; UL File E9809; UL Listed |
| Panduit Part Number | LCB2-562 |
