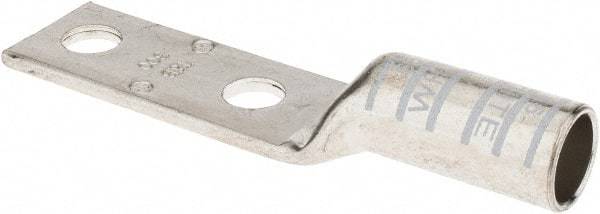

Thomas & Betts - 300 kcmil Wire Noninsulated Compression Connection Rectangle Ring Terminal - 1/2" Stud, 5.23" OAL x 1-1/4" Wide, Tin Plated Copper Contact
Item #: 54059308
Brand: Thomas & Betts
Model #: 54870BE
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Terminal Type | Rectangle |
| Insulation Type | NonInsulated |
| Connection Type | Compression |
| Compatible Wire Size (kcmil) | 300 |
| Stud Size (Inch) | 1/2 |
| Color | White |
| Contact Material | Copper |
| Thickness (Decimal Inch) | 0.1500 |
| Ring Width (Decimal Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 5.2300 |
| Contact Plating | Tin |
| Standards Met | RoHS Compliant |
| Panduit Part Number | LCC300-2X |
