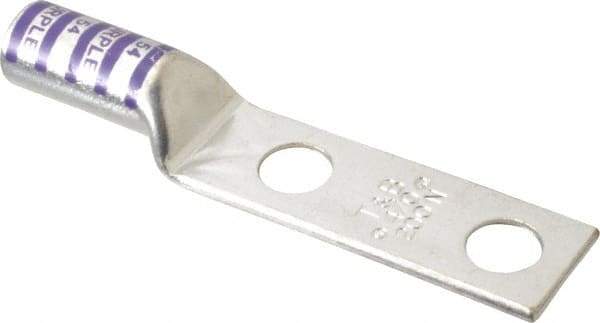

Thomas & Betts - 4/0 AWG Noninsulated Compression Connection Rectangle Ring Terminal - 1/2" Stud, 4.7" OAL x 1.03" Wide, Tin Plated Copper Contact
Item #: 54059282
Brand: Thomas & Betts
Model #: 54866BE
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Terminal Type | Rectangle |
| Insulation Type | NonInsulated |
| Connection Type | Compression |
| Compatible Wire Size (AWG) | 4/0 |
| Stud Size (Inch) | 1/2 |
| Color | Purple |
| Contact Material | Copper |
| Thickness (Decimal Inch) | 0.1400 |
| Ring Width (Decimal Inch) | 1.0300 |
| Overall Length (Decimal Inch) | 4.7000 |
| Contact Plating | Tin |
| Standards Met | RoHS Compliant |
| Panduit Part Number | LCC4/0-12X |
