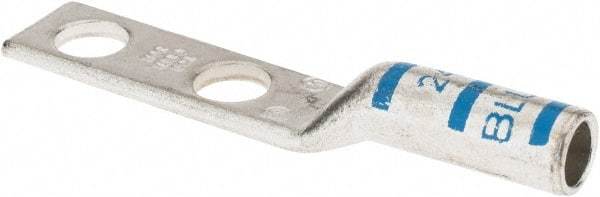

Thomas & Betts - 6 AWG Noninsulated Compression Connection Rectangle Ring Terminal - 1/4" Stud, 2.28" OAL x 0.44" Wide, Tin Plated Copper Contact
Item #: 54059217
Brand: Thomas & Betts
Model #: 54852BE
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Terminal Type | Rectangle |
| Insulation Type | NonInsulated |
| Connection Type | Compression |
| Compatible Wire Size (AWG) | 6 |
| Stud Size (Inch) | 1/4 |
| Color | Blue |
| Contact Material | Copper |
| Thickness (Decimal Inch) | 0.0800 |
| Ring Width (Decimal Inch) | 0.4400 |
| Overall Length (Decimal Inch) | 2.2800 |
| Contact Plating | Tin |
| Standards Met | RoHS Compliant |
| Panduit Part Number | LCC6-14-A-L |
