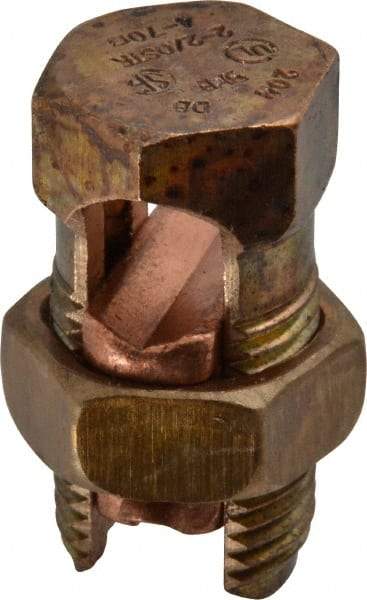

Thomas & Betts - 14 to 2/0 AWG, Copper Wire Compatible, Copper Alloy, Hex Split Bolt Connector - 1-13/16" OAL, 7/8" Head Width, 1-1/16" Base Width
Item #: 54057583
Brand: Thomas & Betts
Model #: 20H
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connector Material | Bronze Alloy |
| Maximum Compatible Wire Size (AWG) | 2/0 |
| Minimum Compatible Wire Size (AWG) | 14 |
| Minimum Tap with One Maximum Main | 14 |
| Pressure Bar Material | Copper Alloy |
| Wire Slot Diameter (Decimal Inch) | 0.4430 |
| Compatible Wire Type | Copper |
| Head Width (Inch) | 7/8 |
| Base Width (Inch) | 1-1/16 |
| Overall Length (Inch) | 1-13/16 |
| Head Shape | Hex |
| Standards Met | CSA Certified; RoHS Compliant; UL File E9809; UL Listed |
