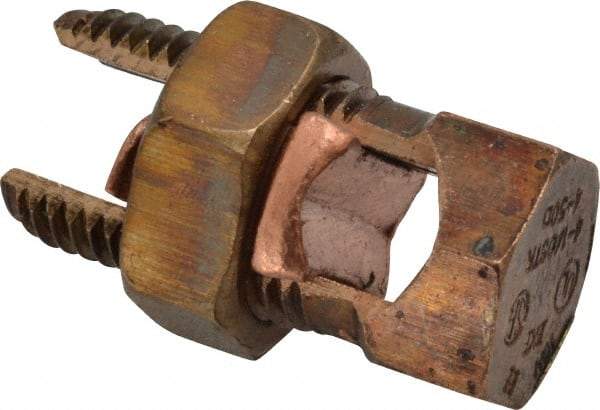

Thomas & Betts - 14 to 1/0 AWG, Copper Wire Compatible, Copper Alloy, Hex Split Bolt Connector - 1-19/32" OAL, 3/4" Head Width, 15/16" Base Width
Item #: 54057575
Brand: Thomas & Betts
Model #: 10H
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connector Material | Bronze Alloy |
| Maximum Compatible Wire Size (AWG) | 1/0 |
| Minimum Compatible Wire Size (AWG) | 14 |
| Minimum Tap with One Maximum Main | 14 |
| Pressure Bar Material | Copper Alloy |
| Wire Slot Diameter (Decimal Inch) | 0.3850 |
| Compatible Wire Type | Copper |
| Head Width (Inch) | 3/4 |
| Base Width (Inch) | 15/16 |
| Overall Length (Inch) | 1-19/32 |
| Head Shape | Hex |
| Standards Met | CSA Certified; RoHS Compliant; UL File E9809; UL Listed |
