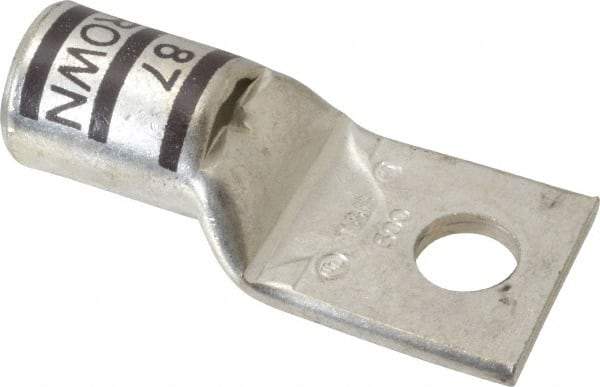

Thomas & Betts - 500 kcmil Wire Noninsulated Compression Connection Square Ring Terminal - 5/8" Stud, 3.63" OAL x 1.61" Wide, Tin Plated Copper Contact
Item #: 54057013
Brand: Thomas & Betts
Model #: 54187
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Terminal Type | Square |
| Insulation Type | NonInsulated |
| Connection Type | Compression |
| Compatible Wire Size (kcmil) | 500 |
| Stud Size (Inch) | 5/8 |
| Color | Brown |
| Contact Material | Copper |
| Thickness (Decimal Inch) | 0.2200 |
| Ring Width (Decimal Inch) | 1.6100 |
| Overall Length (Decimal Inch) | 3.6300 |
| Contact Plating | Tin |
| Standards Met | CSA Certified; RoHS Compliant; UL Listed |
| Panduit Part Number | LCA500-58-6 |
