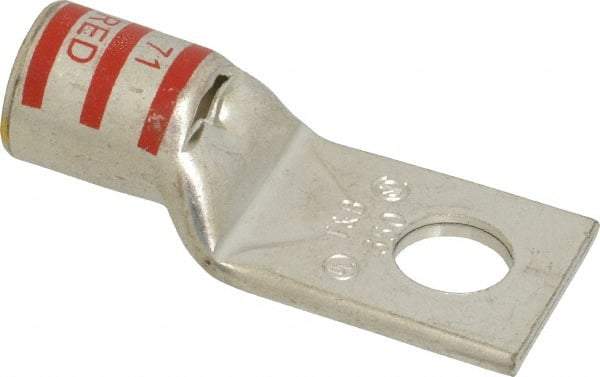

Thomas & Betts - 350 kcmil Wire Noninsulated Compression Connection Square Ring Terminal - 5/8" Stud, 3.21" OAL x 1.36" Wide, Tin Plated Copper Contact
Item #: 54056965
Brand: Thomas & Betts
Model #: 54183
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Terminal Type | Square |
| Insulation Type | NonInsulated |
| Connection Type | Compression |
| Compatible Wire Size (kcmil) | 350 |
| Stud Size (Inch) | 5/8 |
| Color | Red |
| Contact Material | Copper |
| Thickness (Decimal Inch) | 0.1800 |
| Ring Width (Decimal Inch) | 1.3600 |
| Overall Length (Decimal Inch) | 3.2100 |
| Contact Plating | Tin |
| Standards Met | CSA Certified; RoHS Compliant; UL Listed |
