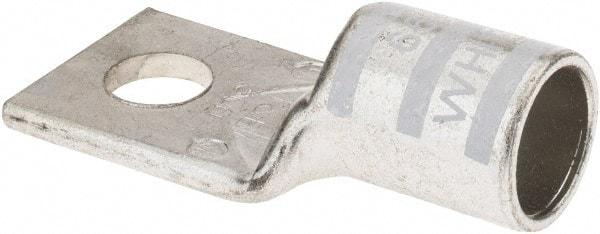

Thomas & Betts - 300 kcmil Wire Noninsulated Compression Connection Square Ring Terminal - 1/2" Stud, 2.7" OAL x 1-1/4" Wide, Tin Plated Copper Contact
Item #: 54056924
Brand: Thomas & Betts
Model #: 54114
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Terminal Type | Square |
| Insulation Type | NonInsulated |
| Connection Type | Compression |
| Compatible Wire Size (kcmil) | 300 |
| Stud Size (Inch) | 1/2 |
| Color | White |
| Contact Material | Copper |
| Thickness (Decimal Inch) | 0.1500 |
| Ring Width (Decimal Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 2.7000 |
| Contact Plating | Tin |
| Standards Met | CSA Certified; RoHS Compliant; UL Listed |
| Panduit Part Number | LCA300-12-X |
