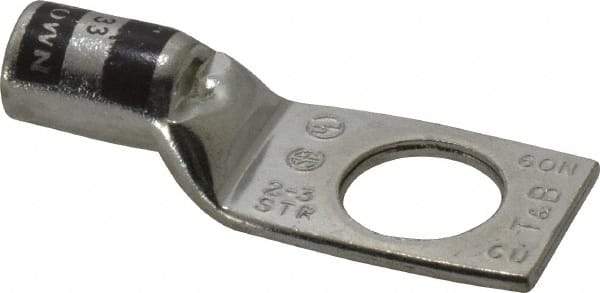

Thomas & Betts - 2 AWG Noninsulated Compression Connection Square Ring Terminal - 1/2" Stud, 1.92" OAL x 3/4" Wide, Tin Plated Copper Contact
Item #: 54056650
Brand: Thomas & Betts
Model #: 54145-TB
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Terminal Type | Square |
| Insulation Type | NonInsulated |
| Connection Type | Compression |
| Compatible Wire Size (AWG) | 2 |
| Stud Size (Inch) | 1/2 |
| Color | Brown |
| Contact Material | Copper |
| Thickness (Decimal Inch) | 0.0800 |
| Ring Width (Decimal Inch) | 3/4 |
| Overall Length (Decimal Inch) | 1.9200 |
| Contact Plating | Tin |
| Standards Met | CSA Certified; RoHS Compliant; UL Listed |
| Panduit Part Number | LCA2-12-Q |
