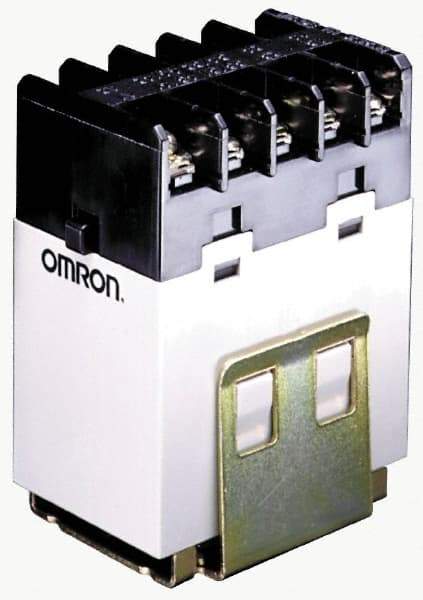

Omron - Standard Electromechanical Screw General Purpose Relay - 25 Amp at 220 VAC, DPST, 24 VDC, 34.5mm Wide x 64mm High x 51.5mm Deep
Item #: 54048764
Brand: Omron
Model #: G7J2A2BBW1DC24
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Relay Form | Electromechanical |
| Coil Voltage | 24 VDC |
| Terminal Type | Screw |
| Contact Form | DPST |
| Amperage | 25 @ 220 VAC |
| Maximum Power Rating (W) | 2 |
| Base Shape | Standard |
| Overall Height (mm) | 64 |
| Overall Width (mm) | 34-1/2 |
| Overall Width (Decimal Inch) | 1.3600 |
| Overall Depth (mm) | 51-1/2 |
| Overall Depth (Decimal Inch) | 2.0300 |
| Standards Met | CSA Certified; UL Listed |
