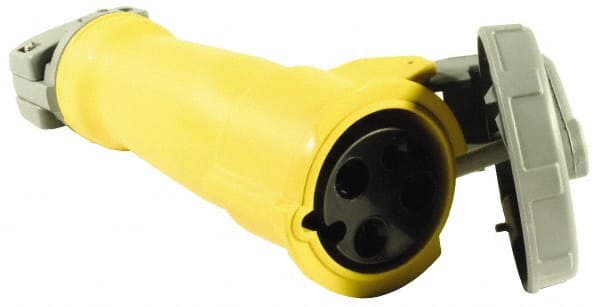

Hubbell Wiring Device-Kellems - Pin & Sleeve Plugs & Connectors; Connector Type: Connector ; Pin Configuration: 5 ; Number of Poles: 4 ; Amperage: 30 ; Voltage: 277/480 VAC ; Maximum Cord Grip Diameter (mm): 36.80
Item #: 54033329
Brand: Hubbell Wiring Device-Kellems
Model #: HBL530C7W
Product Specifications
Pin & Sleeve Plugs & Connectors; Connector Type: Connector ; Pin Configuration: 5 ; Number of Poles: 4 ; Amperage: 30 ; Voltage: 277/480 VAC ; Maximum Cord Grip Diameter (mm): 36.80
| Connector Type | Connector |
| Pin Configuration | 5 |
| Number of Poles | 4 |
| Amperage | 30 |
| Voltage | 277/480 VAC |
| Maximum Cord Grip Diameter (mm) | 36.80 |
| Maximum Cord Grip Diameter (Decimal Inch) | 1.4500 |
| Minimum Cord Grip Diameter (mm) | 12.70 |
| Minimum Cord Grip Diameter (Decimal Inch) | 1/2 |
| Connector Diameter (mm) | 119-1/2 |
| Connector Diameter (Decimal Inch) | 4.7000 |
| Resistance Features | Impact Resistant; Moisture Resistant; Watertight |
| Color | Red |
| Overall Length (mm) | 245.80 |
| Overall Length (Decimal Inch) | 9.6800 |
| Number of Phases | 3 |
| Ingress Protection Rating | IP67 |
| Material | Nylon |
| Standards Met | CSA C22.2 No. 182.1; CSA Certified; CSA File LR285C; IEC 60309-1; RoHS Compliant; UL 1682; UL 1686C2; UL File E146032; UL Listed |
