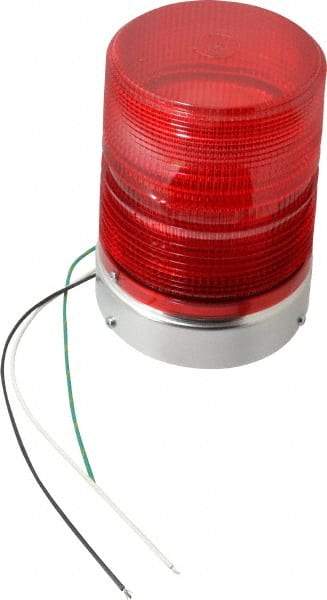

Federal Signal Corp - 120 VAC, 3R NEMA Rated, Strobe Tube, Red, Single Flash Strobe Light - 80 Flashes per min, 1/2 Inch Pipe, 5.7 Inch Diameter, 8-1/2 Inch High, IP45 Ingress Rating, Pipe Mount
Item #: 54028774
Brand: Federal Signal Corp
Model #: 131ST-120R
Exact Tooling IR#: 04
Features and Benefits
Single flash strobes are designed to project one flash at a time in regular close intervals. They can be used in facilities, on vehicles and in environments where noisy environments are a factor.
Strobe tubes produce regular flashes of light and can be used in facilities, on vehicles and in environments where noisy environments are a factor.
NEMA 3R refers to enclosures constructed for either indoor or outdoor use. They provide a degree of protection from falling dirt, rain, sleet, snow and external formation of ice on the enclosure.
| Product Specifications | |
|---|---|
| Light Type | Single Flash Strobe |
| Lens Color | Red |
| Lamp Type | Strobe Tube |
| Mounting Type | Pipe Mount |
| NEMA Rating | 3R |
| Voltage | 120 VAC |
| Recommended Environment | Hazardous Location; Indoor; Outdoor |
| Flashes Per Minute | 80 |
| Amperage | 0.60 |
| Ingress Protection Rating | IP45 |
| Pipe/Pendant Mount Size (Inch) | 1/2 (Pipe) |
| Overall Height (Decimal Inch) | 8-1/2 |
| Overall Height (mm) | 215.90 |
| Overall Height (Inch) | 8-1/2 |
| Overall Diameter (Decimal Inch) | 5.7000 |
| Overall Diameter (mm) | 144.80 |
| Maximum Operating Temperature (F) | 150.80 |
| Minimum Operating Temperature (F) | -31 |
| Resistance Features | Abuse Resistant; Anti-Corrosive; Impact Resistant |
| Standards Met | CSA Certified; cUL Listed; UL Listed |
